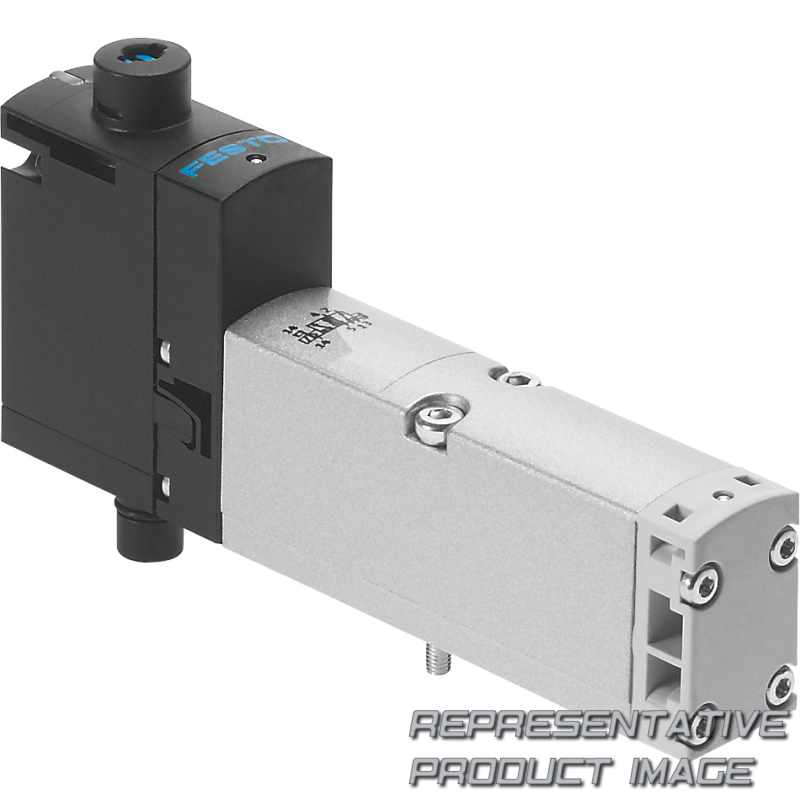

FESTO 539185 solenoid valve

Name: 539185 FESTO
Brand: FESTO
SKU: 675807-en-gbp
Price: 98.65 GBP
Availability: InStock

VSVA-B-M52-MZD-A2-1T1L

£98.65 ~~£107.95~~ -8%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (M52)	5/2-way valve, monostable
Additional features	Without
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Pilot air (Z)	External

Material screws		Galvanised steel
Material seals		FPM HNBR NBR
Pneumatic connection, port 5		Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 3		Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 1		Sub-base size 18 mm to ISO 15407-2
Pilot air port 12/14		Sub-base size 18 mm to ISO 15407-2
Electrical connection		Plug-in To ISO 15407-2
Ambient temperature		-5 °C ... 50 °C
Relative air humidity		0 - 90%
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Immunity to surge		2,5 kV
Nominal operating voltage DC		24 V
Max. negative test pulse with 1 signal		800 µs
Duty cycle		100%
Switching time off		38 ms
Valve flow rate, pneumatically linked, flow optimized		700 l/min
Flow rate of valve		750 l/min
Signal status display		LED
Symbol		00991190
Pilot air supply		External Internal
Manual override		Detenting Non-detenting Covered
Sealing principle		Soft
Degree of protection		IP65 NEMA 4
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		Sub-base size 18 mm to ISO 15407-1 Sub-base size 02 to VDMA 24563 G1/8
Construction width		18 mm
Valve function		5/2-way, monostable

Material housing		Die-cast aluminium PA
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 18 mm to ISO 15407-2
Pneumatic connection, port 2		Sub-base size 18 mm to ISO 15407-2
Pilot exhaust port 82/84		Ducted Not ducted as per standard Either:
Type of mounting		On sub-base
Product weight		163 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Pollution degree		3
Characteristic coil data		24 V DC: 1.6 W
Max. current consumption		72 mA
Max. positive test pulse with 0 signal		1.500 µs
Switching time on		12 ms
Flow rate of pneumatically interlinked valve		550 l/min
Flow rate of valve on individual sub-base		600 l/min
Pilot pressure		3 bar ... 10 bar
lap		Positive overlap
Flow direction		optional
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option Via throttle plate Via individual sub-base
Approval		c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		550 l/min
Type of actuation		Electric
