560744 Festo

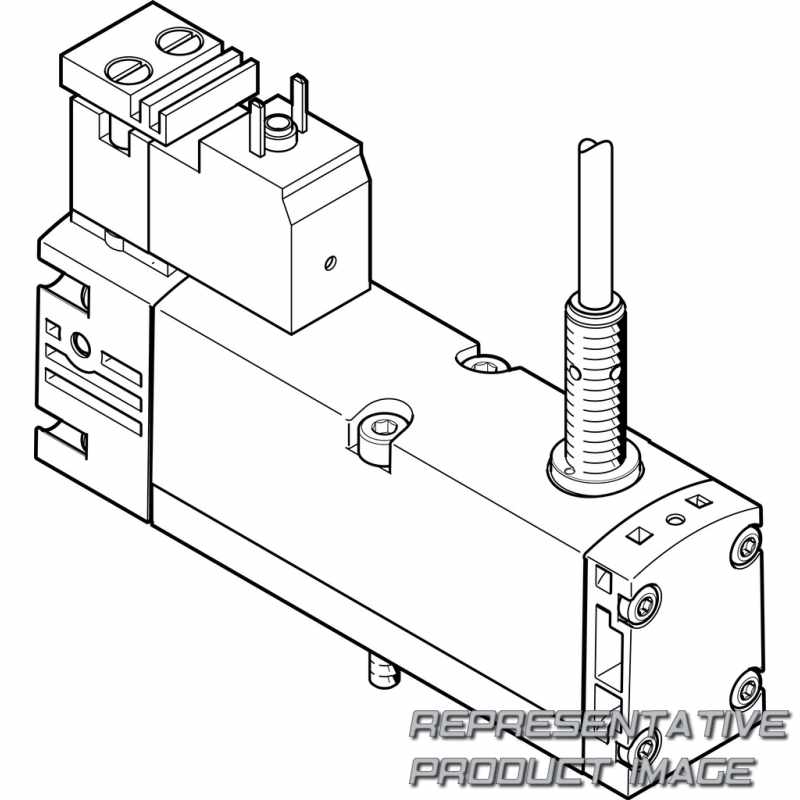

FESTO 560744 solenoid valve

Name: 560744 FESTO
Brand: FESTO
SKU: 679076-en-gbp
Price: 196.42 GBP
Availability: SoldOut

VSVA-B-M52-MZ-A1-1C1-ANC

£196.42

Limited stock only available on quotation

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (M52)	5/2-way valve, monostable
Additional features	Without
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Pilot air (Z)	External

Manual override	Without
Pneumatic connection (A1)	26 mm (01) ISO 15407-1/-2
Nominal operating voltage (1)	24 V DC
Electrical connection (C1)	Plug pattern type C, to EN 175301-803
Position sensing (ANC)	Proximity sensor, NPN with open cable end
Display	None

Technical data

Switching element function		N/C contact
Material housing		Die-cast aluminium PA
Note on materials		RoHS-compliant
Pneumatic connection, port 5		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 3		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 1		Sub-base size 26 mm to ISO 15407-1
Pilot air port 12/14		Sub-base size 26 mm to ISO 15407-1
Sensor connection		Cable 2.5 m
Voltage drop sensor		≤ 2 V
Max. switching frequency sensor		5.000 Hz
Idle current sensor		≤ 10 mA
Operating voltage range, DC sensor		10 V ... 30 V
Max. tightening torque for valve mounting		1,8 Nm ... 2,2 Nm
Sound pressure level		85 dB(A)
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Switching output		NPN
Max. negative test pulse with 1 signal		800 µs
Duty cycle		100%
Valve - sensor switching time on		60 ms
Switching time off		41 ms
Flow rate of valve on individual sub-base		1.100 l/min
Pilot pressure		3 bar ... 10 bar
Switching position sensing		Normal position via sensor
Reverse polarity protection sensor		For all electrical connections
Measuring principle		Inductive
Flow direction		optional
Type of piloting		Pilot actuated
Conforms to standard		ISO 15407-1 VDMA 24563
Sealing principle		Soft
Nominal size		9 mm
CE marking (see declaration of conformity)		To UK instructions for EMC
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		C-Tick c UL us - Recognized (OL)
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		1.100 l/min
Type of actuation		Electric

Material screws		Galvanised steel
Material seals		FPM NBR
Pilot control interface		To ISO 15218
Pneumatic connection, port 4		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 2		Sub-base size 26 mm to ISO 15407-1
Pilot exhaust port 82/84		Ducted Not ducted Either:
Type of mounting		On sub-base
Electrical connection		Type C To EN 175301-803 Without protective earth conductor
Residual ripple sensor		± 10%
Max. output current sensor		200 mA
Short-circuit strength sensor		Pulsed
Product weight		332 g
Ambient temperature		-5 °C ... 50 °C
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		24 V DC: 1.8 W
Nominal operating voltage DC		24 V
Max. positive test pulse with 0 signal		1.000 µs
Valve - sensor switching time off		11 ms
Switching time on		21 ms
Flow rate of pneumatically interlinked valve		1.100 l/min
Flow rate of valve		1.400 l/min
Switching status display sensor		LED
Signal status display		With accessories
lap		Positive overlap
Symbol		00997391
Pilot air supply		External
Manual override		Covered
Mounting position		optional
Exhaust-air function		With flow control option Via throttle plate Via individual sub-base
Degree of protection		IP65 NEMA 4
Certificate issuing authority		UL MH19482
KC mark		KC-EMV
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 16 bar
pneumatic working port		Sub-base size 26 mm to ISO 15407-1 Sub-base size 01 to VDMA 24563 G1/4
Construction width		26 mm
Valve function		5/2-way, monostable
