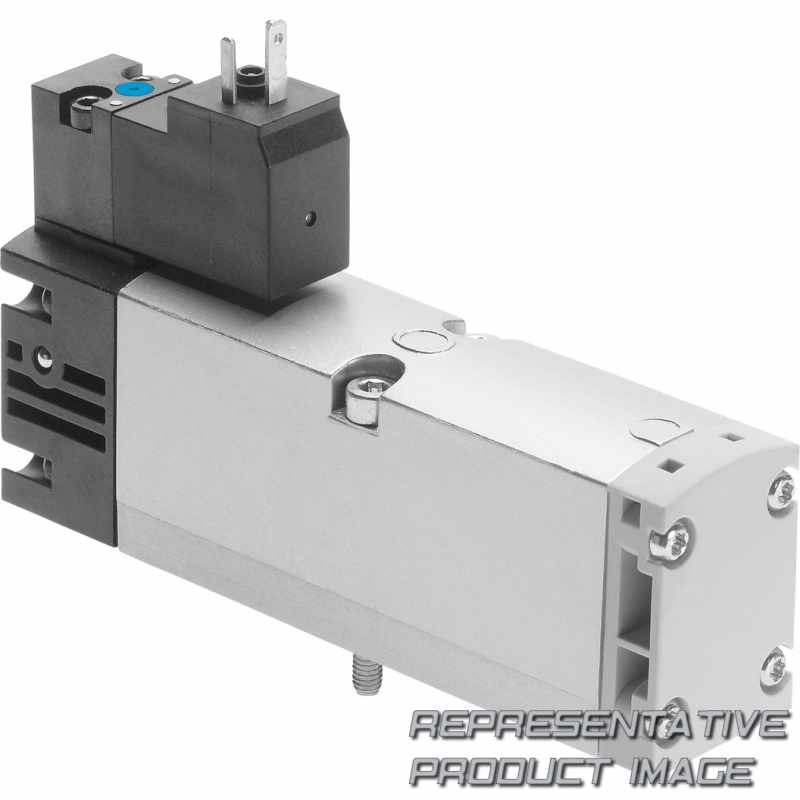

FESTO 547220 solenoid valve

Name: 547220 FESTO
Brand: FESTO
SKU: 666654-en-gbp
Price: 119.88 GBP
Availability: InStock

VSVA-B-M52-MH-A1-3AC1

£119.88

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (M52)	5/2-way valve, monostable
Additional features	Without
Reset method for monostable/single solenoid valves (M)	Mechanical spring
Pilot air	Internal

Material screws		Steel Galvanised
Material seals		HNBR NBR
Pilot control interface		To ISO 15218
Pneumatic connection, port 4		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 2		Sub-base size 26 mm to ISO 15407-1
Pilot exhaust port 82/84		Ducted Not ducted as per standard
Auxiliary pilot air port 12		Sub-base size 26 mm to ISO 15407-1
Electrical connection		Type C With protective earth conductor To DIN EN 175301-803
Max. tightening torque for valve mounting		2 Nm
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Characteristic coil data		230 V AC: 50/60 Hz, pick-up power 2.9 VA, holding power 2.1 VA
Switching time on		26 ms
Flow rate of pneumatically interlinked valve		1.100 l/min
Flow rate of valve		1.400 l/min
Signal status display		LED
Symbol		00991003
Pilot air supply		Internal
Manual override		Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option
Degree of protection		IP65 NEMA 4
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Design		Piston gate valve
Operating voltage		230V AC
Standard nominal flow rate		1.100 l/min
Type of actuation		Electric

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 5		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 3		Sub-base size 26 mm to ISO 15407-1
Pneumatic connection, port 1		Sub-base size 26 mm to ISO 15407-1
Auxiliary pilot air port 14		Sub-base size 26 mm to ISO 15407-1
Type of mounting		On sub-base
Product weight		180 g
Ambient temperature		-5 °C ... 50 °C
Sound pressure level		85 dB(A)
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		-15%/+10%
Duty cycle		100%
Switching time off		56 ms
Flow rate of valve on individual sub-base		1.100 l/min
Pilot pressure		3 bar ... 10 bar
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Conforms to standard		ISO 15407-1 VDMA 24563
Sealing principle		Soft
Nominal size		9 mm
CE marking (see declaration of conformity)		To UK instructions for EMC
Type of reset		Mechanical spring
Operating pressure		3 bar ... 10 bar
pneumatic working port		Sub-base size 26 mm to ISO 15407-1 Sub-base size 01 to VDMA 24563 G1/4
Valve size		26 mm
Valve function		5/2-way, monostable
