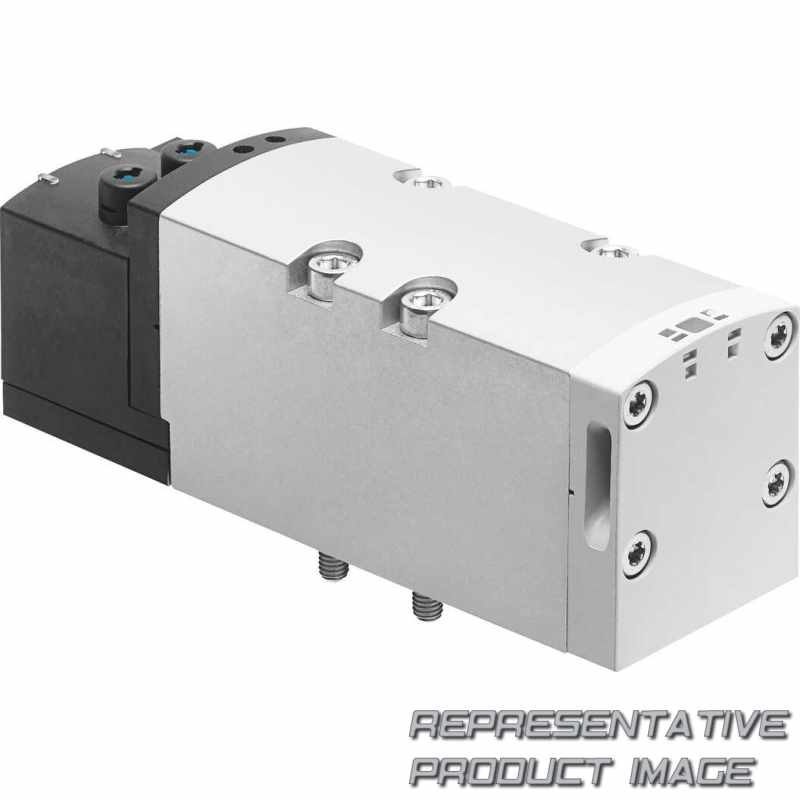

FESTO 8034969 solenoid valve

Name: 8034969 FESTO
Brand: FESTO
SKU: 660931-en-gbp
Price: 216.09 GBP
Availability: InStock

VSVA-B-B52-ZH-D2-1T1L

£216.09

available with 7 to 15 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (B52)	5/2-way valve, bistable
Additional features	Without
Reset method for monostable/single solenoid valves	Without
Pilot air (Z)	External

Material screws		Galvanised steel
Material seals		FPM HNBR NBR
Pneumatic connection, port 5		Sub-base size 2 to ISO 5599-2
Pneumatic connection, port 3		Sub-base size 2 to ISO 5599-2
Pneumatic connection, port 1		Sub-base size 2 to ISO 5599-2
Pilot air port 12/14		Sub-base size 2 to ISO 5599-2
Electrical connection		Plug-in To ISO 5599-2
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Immunity to surge		2,5 kV
Nominal current with current reduction		35 mA after 30 ms
Max. negative test pulse with 1 signal		3.500 µs
Duty cycle		100%
Flow rate of pneumatically interlinked valve		2.900 l/min
Flow rate of valve		4.000 l/min
Signal status display		LED
Flow direction		optional
Type of piloting		Pilot actuated
Conforms to standard		ISO 5599-2
Sealing principle		Soft
Grid dimension		59 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Approval		c UL us - Recognized (OL)
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		Sub-base size 2 to ISO 5599-2 G1/2
Construction width		52 mm
Valve function		5/2 double solenoid

Material housing		Die-cast aluminium PA
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 2 to ISO 5599-2
Pneumatic connection, port 2		Sub-base size 2 to ISO 5599-2
Pilot exhaust port 82/84		Ducted Not ducted as per standard Either:
Type of mounting		On sub-base
Product weight		732 g
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Pollution degree		3
Characteristic coil data		24 V DC: 4.6 W
Nominal pick-up current per solenoid coil		165 mA up to 30 ms
Max. positive test pulse with 0 signal		1.000 µs
Switching time reversal		18 ms
Flow rate of valve on individual sub-base		3.400 l/min
Pilot pressure		3 bar ... 10 bar

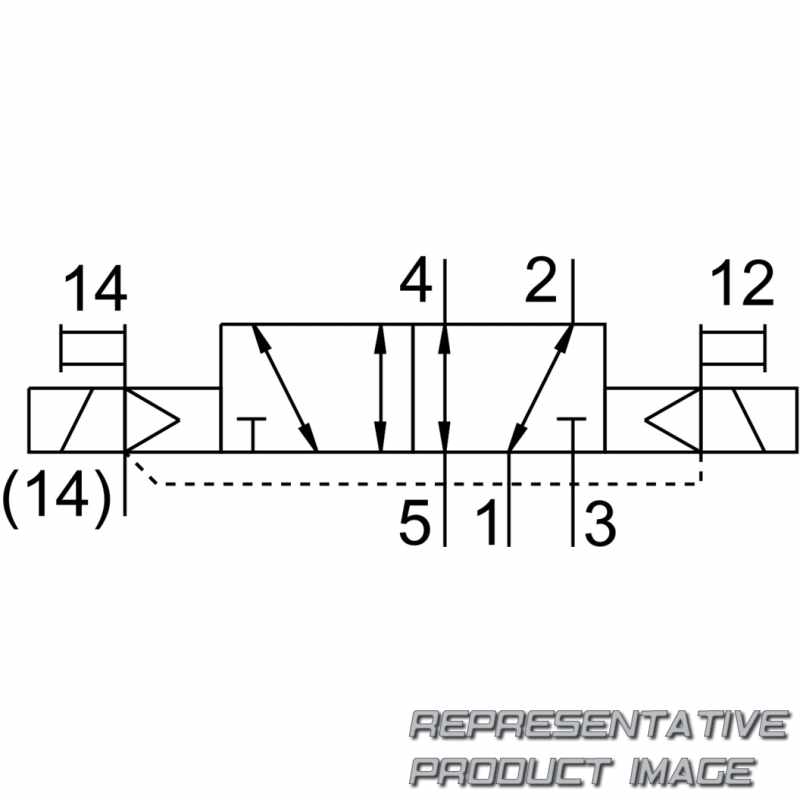

Symbol		00992941
Pilot air supply		External
Manual override		Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option Via throttle plate Via individual sub-base
Degree of protection		IP65 NEMA 4
KC mark		KC-EMV
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		2.900 l/min
Type of actuation		Electric
