FESTO 8034836 solenoid valve

Name: 8034836 FESTO
Brand: FESTO
SKU: 660899-en-gbp
Price: 180.87 GBP
Availability: InStock

VSVA-B-B52-Z-D1-1T1L

£180.87

available with 7 to 15 days delivery to United States

Specifications

Series (VSVA)	Standards-based valve VSVA
Directional control valve type (B)	Sub-base valve
Design principle	Piston spool
Valve function (B52)	5/2-way valve, bistable
Additional features	Without
Reset method for monostable/single solenoid valves	Without
Pilot air (Z)	External

Material screws		Galvanised steel
Material seals		FPM HNBR NBR
Pneumatic connection, port 5		Sub-base size 1 to ISO 5599-2
Pneumatic connection, port 3		Sub-base size 1 to ISO 5599-2
Pneumatic connection, port 1		Sub-base size 1 to ISO 5599-2
Pilot air port 12/14		Sub-base size 1 to ISO 5599-2
Electrical connection		Plug-in To ISO 5599-2
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Pollution degree		3
Characteristic coil data		24 V DC: 1.6 W
Max. negative test pulse with 1 signal		900 µs
Switching time reversal		16 ms
Valve flow rate, pneumatically linked, flow optimized		1.860 l/min
Flow rate of valve		1.800 l/min
Signal status display		LED
Flow direction		optional
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		With flow control option Via throttle plate Via individual sub-base
Approval		c UL us - Recognized (OL)
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		Sub-base size 1 to ISO 5599-2 G3/8
Construction width		42 mm
Valve function		5/2 double solenoid

Material housing		Die-cast aluminium PA
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 1 to ISO 5599-2
Pneumatic connection, port 2		Sub-base size 1 to ISO 5599-2
Pilot exhaust port 82/84		Ducted Not ducted as per standard Either:
Type of mounting		On sub-base
Product weight		439 g
Relative air humidity		0 - 90%
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 10 %
Immunity to surge		2,5 kV
Nominal pick-up current per solenoid coil		72 mA to 30 ms
Max. positive test pulse with 0 signal		1.400 µs
Flow rate of pneumatically interlinked valve		1.300 l/min
Flow rate of valve on individual sub-base		1.500 l/min
Pilot pressure		3 bar ... 10 bar

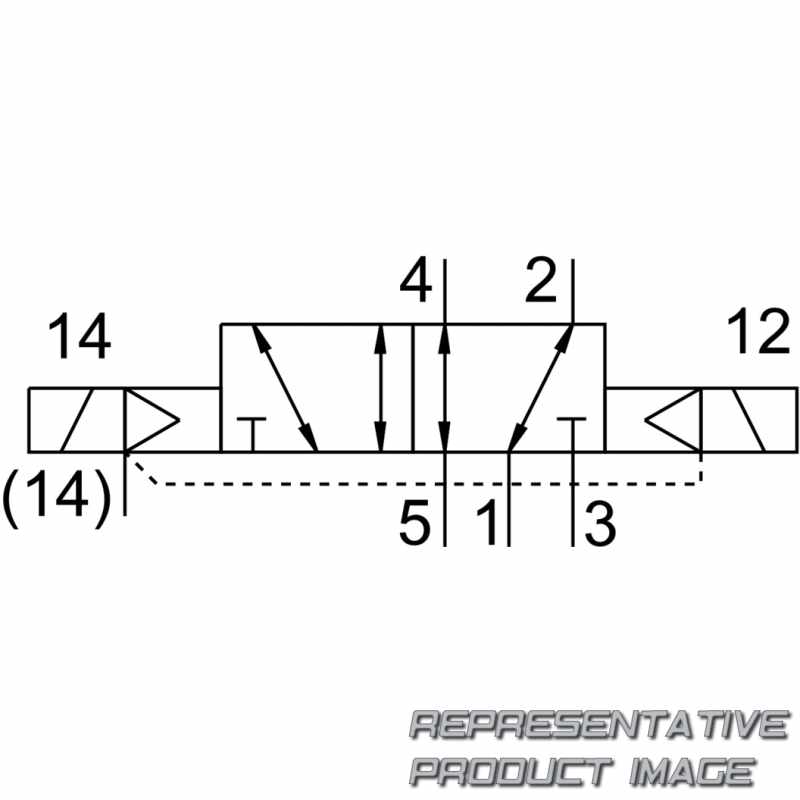

Symbol		00992990
Pilot air supply		External
Manual override		Covered
Sealing principle		Soft
Degree of protection		IP65 NEMA 4
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		1.300 l/min
Type of actuation		Electric
