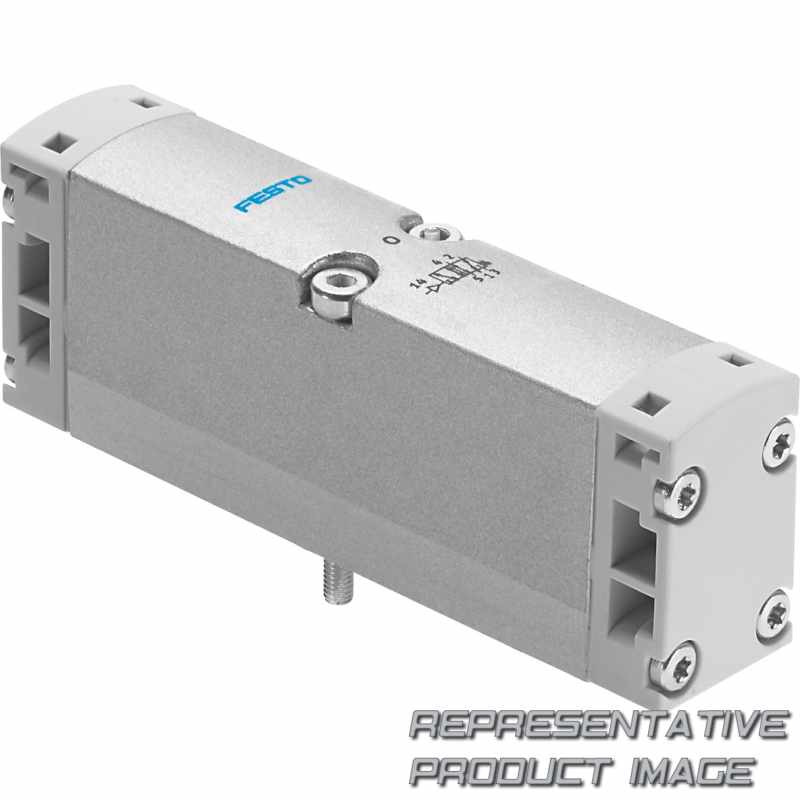

FESTO 546730 pneumatic valve

Name: 546730 FESTO
Brand: FESTO
SKU: 676111-en-gbp
Price: 95.11 GBP
Availability: InStock

VSPA-B-P53C-A2

£95.11

4 pcs. with 1 to 3 days delivery to United States

Specifications

Series (VSPA)	Standards-based valve to ISO 15407-1/-2
Directional control valve type (B)	Sub-base valve
Valve function (P53C)	5/3-way valve, mid-position closed

Reset method for monostable/single solenoid valves	None
Pneumatic connection (A2)	18 mm (02) ISO 15407-1/-2

Material screws		Steel Galvanised
Material seals		NBR
Pneumatic connection, port 5		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 3		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 1		Sub-base size 18 mm to ISO 15407-1
Pilot air port 12		Sub-base size 18 mm to ISO 15407-1
Max. tightening torque for valve mounting		0,9 Nm ... 1,1 Nm
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Explosion protection		Zone 2 (ATEX) Zone 22 (ATEX)
Switching time off		18 ms
Flow rate of valve on individual sub-base		500 l/min
Pilot pressure		3 bar ... 10 bar
Symbol		00991018
Type of piloting		Direct
Mounting position		optional
Exhaust-air function		With flow control option
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 10 bar
Standard nominal flow rate		450 l/min
Type of actuation		Pneumatic

Material housing		Die-cast aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 18 mm to ISO 15407-1
Pneumatic connection, port 2		Sub-base size 18 mm to ISO 15407-1
Pilot air port 14		Sub-base size 18 mm to ISO 15407-1
Product weight		80 g
Ambient temperature		-10 °C ... 60 °C
Relative air humidity		0 - 90%
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time on		9 ms
Flow rate of pneumatically interlinked valve		450 l/min
Flow rate of valve		650 l/min
lap		Positive overlap
Flow direction		Reversible
Conforms to standard		ISO 15407-1 VDMA 24563
Sealing principle		Soft
Nominal size		5 mm
Design		Piston gate valve
pneumatic working port		Sub-base size 18 mm to ISO 15407-1 Sub-base size 02 to VDMA 24563 G1/8
Construction width		18 mm
Valve function		5/3 closed
