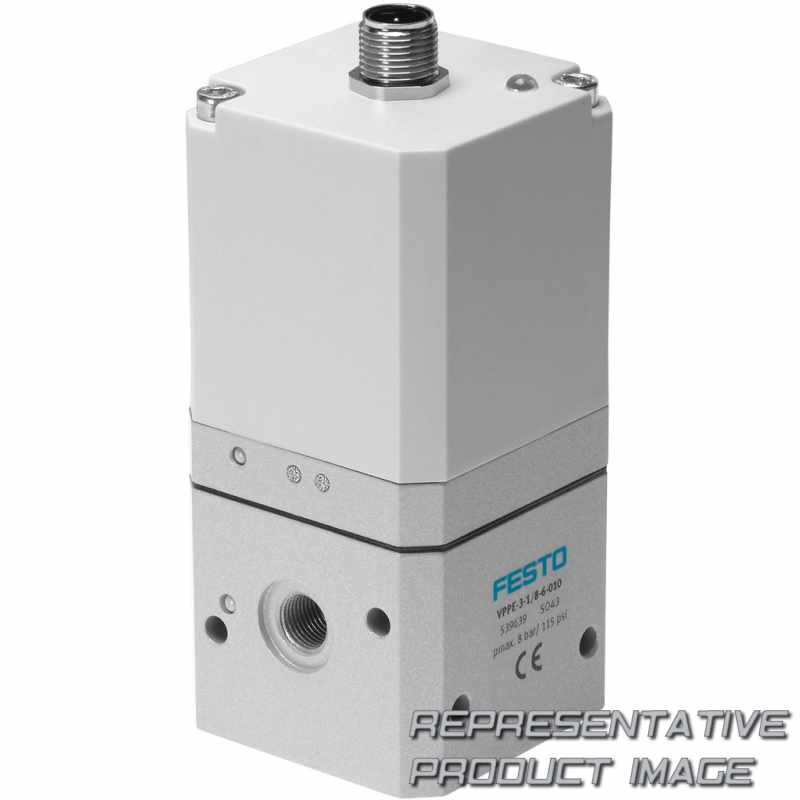

FESTO 539639 proportional-pressure regulator

Name: 539639 FESTO
Brand: FESTO
SKU: 663753-en-gbp
Price: 546.43 GBP
Availability: InStock

VPPE-3-1/8-6-010

£546.43

3 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	≤ 8 bar
Actuation Type	Electric
Mounting Position	optional Preferably vertical

Pneumatic connection	G1/8
Weight	445g

Material membrane		NBR
Note on materials		RoHS-compliant
Pneumatic connection, port 1		G1/8
Electrical connection		4-pin M12x1 Plugs Round design
Total accuracy		2.25%FS
Hysteresis		2,5 %FS
Product weight		445 g
Degree of protection		IP65
LABS (PWIS) conformity		VDMA24364-B2-L
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Approval		RCM trademark c UL us listed (OL)
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Residual ripple		10 %
Max. current consumption		150 mA
Switching time on		550 ms
Standard nominal flow rate		850 l/min
Inlet pressure 1		0,6 MPa ... 0,8 MPa
Operating pressure		≤ 8 bar
Reverse polarity protection		For all electrical connections
Safety instructions		Safety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
Design		Piloted piston regulator
Sealing principle		Soft
Nominal size, exhaust		2,5 mm

Material housing		Wrought aluminium alloy
Pneumatic connection, port 2		G1/8
Type of mounting		With through-hole
Temperature cooefficient		0,04 %/K
Reproducibility		0,5 %FS
Linearity		1 %FS
Ambient temperature		10 °C ... 50 °C
Media temperature		10 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
KC mark		KC-EMV
Note on operating and pilot medium		Lubricated operation not possible
SETPOINT/ACTUAL values		Voltage type 0 - 10 V
Max. electrical power consumption		3,6 W
Operational voltage range DC		21,6 V ... 26,4 V
Switching time off		1.300 ms
Max. pressure hysteresis		0,15 bar
Pressure regulation range		0,15 bar ... 6 bar
Valve function		3-way proportional-pressure regulator, closed
Symbol		00995303
Short circuit current rating		For all electrical connections
Mounting position		optional Preferably vertical
Type of actuation		Electric
Nominal size, supply		5 mm
