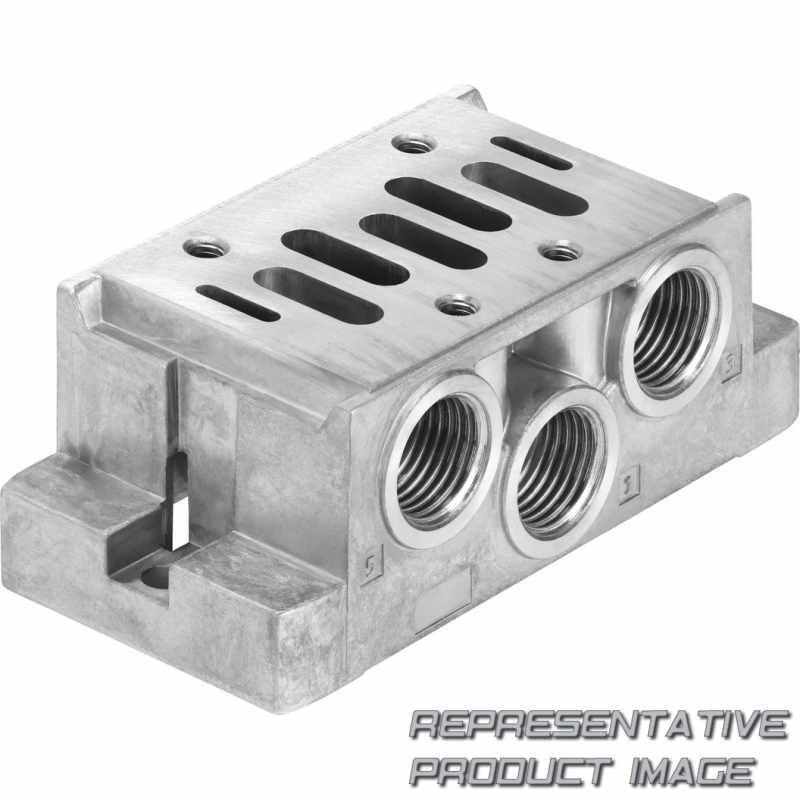

FESTO 8032644 sub-base

Name: 8032644 FESTO
Brand: FESTO
SKU: 665595-en-gbp
Price: 35.72 GBP
Availability: InStock

VABS-S1-2S-G12

£35.72

1 pcs. with 1 to 3 days delivery to United States

Specifications

Material sub-base		Die-cast aluminium
Pneumatic connection, port 5		G1/2
Pneumatic connection, port 3		G1/2
Pneumatic connection, port 1		G1/2
Product weight		380 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Storage temperature		-20 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Pilot pressure		0 bar ... 10 bar
Mounting position		optional
Type of actuation		Electric
Construction width		58 mm

Note on materials		RoHS-compliant
Pneumatic connection, port 4		G1/2
Pneumatic connection, port 2		G1/2
Type of mounting		Via through-hole for M6 screw
Ambient temperature		-10 °C ... 60 °C
Media temperature		-10 °C ... 60 °C
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Suitability for vacuum		yes
Operating pressure		0 bar ... 16 bar
Sealing principle		Soft
Based on standard		ISO 5599-1
