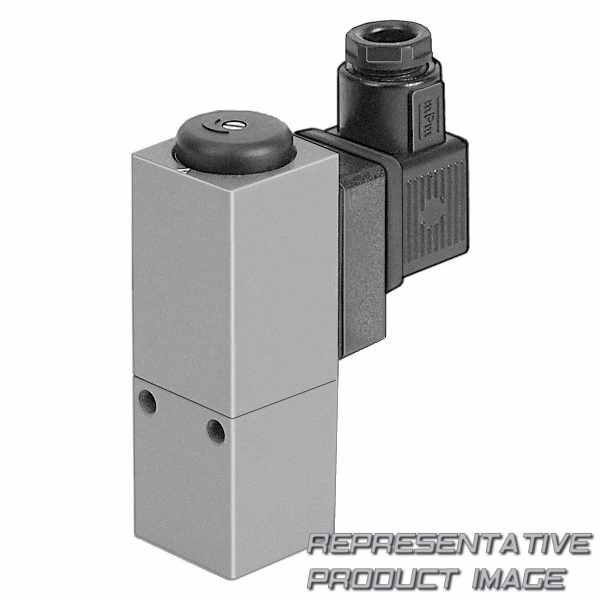

FESTO 150261 vacuum switch

Name: 150261 FESTO
Brand: FESTO
SKU: 688538-en-gbp
Price: 186.62 GBP
Availability: InStock

VPEV-1/8

£186.62 6 pcs. with 1 to 3 days delivery to United States

Specifications

Electrical connection	Plug, type A, square design, to EN 175301-803
Setting options	None
Plug socket	Included in the scope of delivery

LABS (PWIS) conformity		VDMA24364-B1/B2-L
Degree of protection		IP65
Setting range threshold value		-0,95 bar ... -0,2 bar
Material switch contact		Silver
Product weight		240 g
Mounting position		optional
Electrical connection		Type A Plugs To DIN 43650 Square design
Utilisation category - inductive load		AC-14 DC-13
Max. output current		5.000 mA
Max. switching output voltage AC		250 V
Switching element function		Changeover switch
Media temperature		-20 °C ... 80 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure measuring range		-1 bar ... 1,6 bar
Measured variable		Relative pressure
Explosion protection		The information in the certificate must be observed! Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
CE mark (see declaration of conformity)		To EU Low Voltage Directive

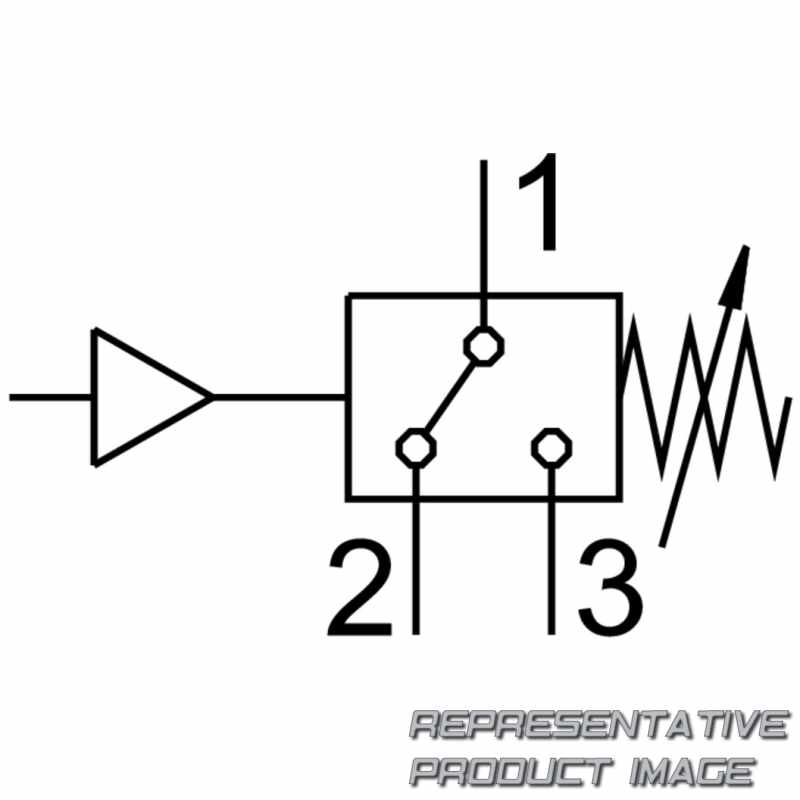

Symbol		00991471

Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range threshold value after conversion		0,16 bar ... 1,6 bar
Switching status indication		Yellow LED
Material housing		Wrought aluminium alloy
Pneumatic connection		G1/8
Type of mounting		With through-hole
Utilisation category - resistive load		AC-12 DC-12
Min. load current		1 mA at 24 V 10 mA at 10 V 100 mA at 5 V
Max. switching output voltage DC		125 V
Max. switching frequency		3 Hz
Ambient temperature		-20 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Operating pressure		-1 bar ... 1,6 bar
Measurement method		Pneumatic/electric pressure transducer
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Approval		CCC
Conforms to standard		EN 60947-5-1
