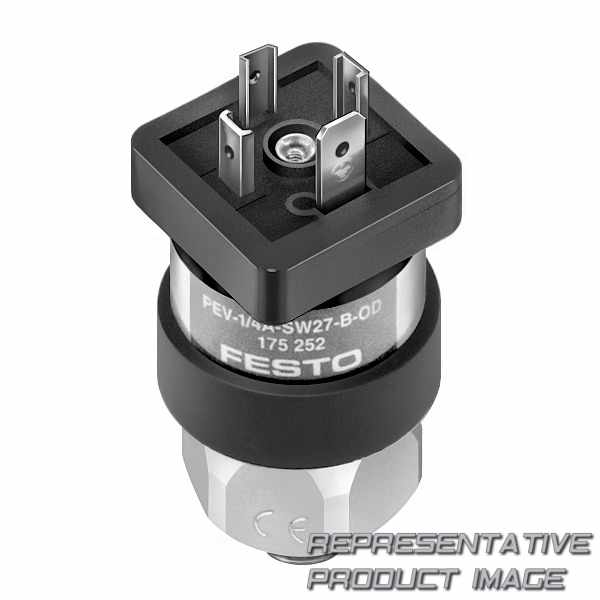

FESTO 175252 pressure switch

Name: 175252 FESTO
Brand: FESTO
SKU: 688521-en-gbp
Price: 135.22 GBP
Availability: InStock

PEV-1/4-A-SW27-B-OD

£135.22

4 pcs. with 1 to 3 days delivery to United States

Specifications

Electrical connection	Plug, type A, square design, to EN 175301-803
Setting options	None
Plug socket	Included in the scope of delivery

LABS (PWIS) conformity		VDMA24364-B1/B2-L
Setting range threshold value		1 bar ... 10 bar
Material housing		PA66-GF30 Galvanised steel
Pneumatic connection		G1/4
Type of mounting		Screw-in
Max. output current		4.000 mA
Max. switching output voltage AC		250 V
Switching element function		Changeover switch
Media temperature		-20 °C ... 80 °C
Operating pressure		1 bar ... 10 bar
Measured variable		Relative pressure
CE mark (see declaration of conformity)		To EU Low Voltage Directive

Degree of protection		IP65
Material membrane		NBR
Product weight		900 g
Mounting position		optional
Electrical connection		4-pin Plugs
Max. switching output voltage DC		250 V
Max. switching frequency		3 Hz
Ambient temperature		-30 °C ... 100 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Measurement method		Pneumatic/electric pressure transducer
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Symbol		00991472
