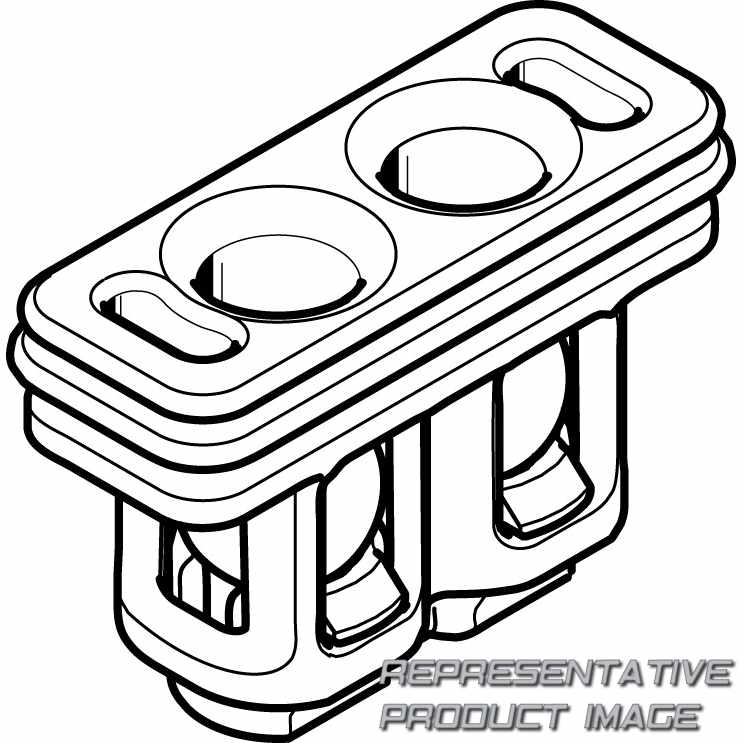

FESTO 8039821 check valve

Name: 8039821 FESTO
Brand: FESTO
SKU: 664860-en-gbp
Price: 7.01 GBP
Availability: InStock

VMPA2-RV

£7.01 ~~£8.90~~ -21%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	0,5 bar ... 8 bar
Actuation Type	Pneumatic

Mounting Position	optional
Weight	19g

Material seals		NBR
Product weight		0,19 g
Media temperature		-5 °C ... 50 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Type act., cont. n.-r. func.		Pneumatic
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature		-5 °C ... 50 °C
Operating pressure		0,5 bar ... 8 bar
Type of mounting		Clip
Valve function		Piloted non-return function

Note on materials		RoHS-compliant
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Storage temperature		-20 °C ... 40 °C
Corrosion resistance class CRC		4 - Very high corrosion stress
Operating pressure complete temperature range		0,5 bar ... 8 bar
Mounting position		optional
Material housing		POM
Pilot pressure		7,25 psi ... 116 psi
Standard nominal flow rate		330 l/min
Type of actuation		Pneumatic
