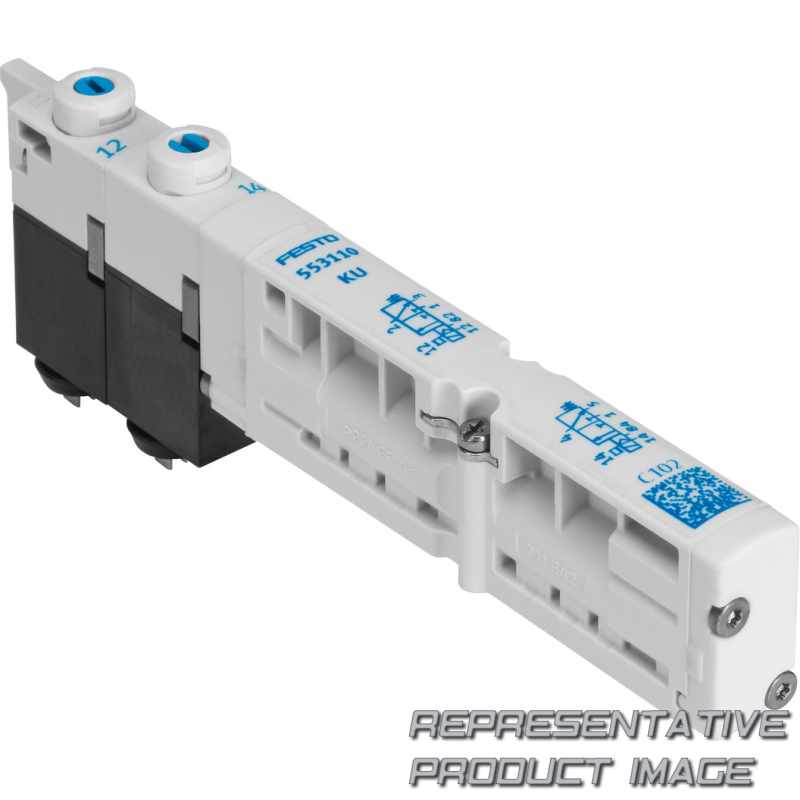

FESTO 553111 solenoid valve

Name: 553111 FESTO
Brand: FESTO
SKU: 682285-en-gbp
Price: 110.77 GBP
Availability: InStock

VMPA1-M1H-NU-PI

£110.77

9 pcs. with 1 to 3 days delivery to United States

Specifications

Mounting Position	optional
Weight	42g

Material housing		PPA reinforced
Note on materials		RoHS-compliant
Product weight		42 g
Ambient temperature		-5 °C ... 50 °C
Media temperature		-5 °C ... 50 °C
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Permissible voltage fluctuations		+/- 25%
Max. positive test pulse with 0 signal		400 µs
Switching time off		8 ms
Suitability for vacuum		yes
Signal status display		yes
Symbol		00992875
Type of piloting		Pilot actuated
Mounting position		optional
Degree of protection		IP65 In assembled state To IEC 60529
Approval		c UL us - Recognized (OL)
Design		Poppet valve with spring return
Operating voltage		24V DC
Valve size		10 mm
Valve function		2x3/2-way, open, monostable

Material seals		NBR
Type of mounting		With through-hole
Max. tightening torque for valve mounting		0,25 Nm
Relative air humidity		Max. 90% at 40°C
Storage temperature		-20 °C ... 40 °C
Corrosion resistance class CRC		3 - high corrosion stress
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Max. negative test pulse with 1 signal		200 µs
Switching time on		10 ms
Standard nominal flow rate with QS-6		190 l/min
Pilot pressure		4 bar ... 8 bar
lap		Underlap
Flow direction		Reversible
Manual override		Detenting Non-detenting
Sealing principle		Soft
Certificate issuing authority		UL MH19482
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 10 bar
Standard nominal flow rate		190 l/min
Type of actuation		Electric
