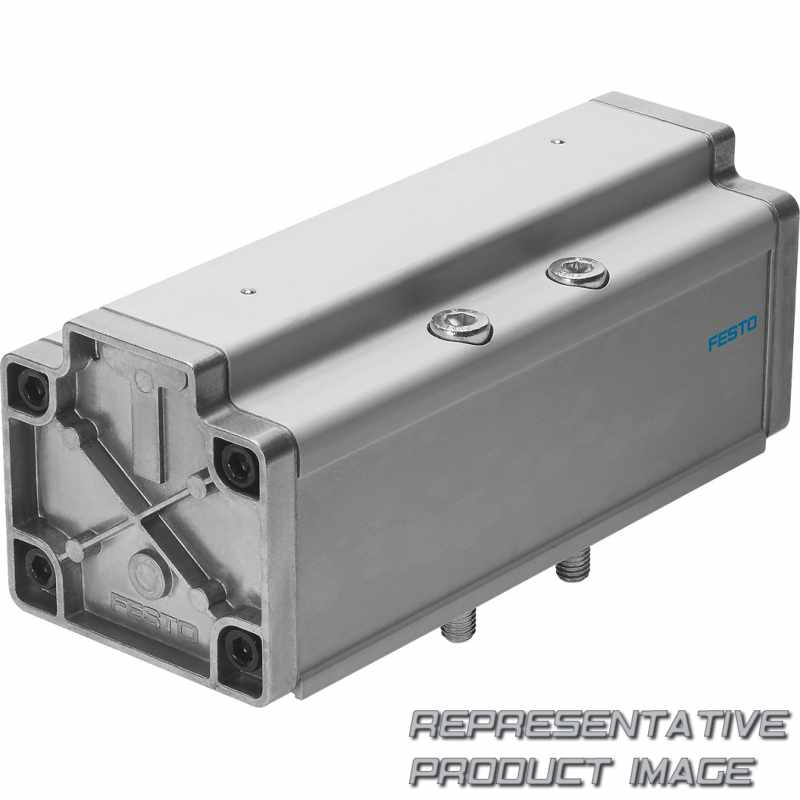

FESTO 12464 pneumatic valve

Name: 12464 FESTO
Brand: FESTO
SKU: 667187-en-gbp
Price: 596.46 GBP
Availability: InStock

VL-5/3E-3/4-D-4

£596.46

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material housing		Aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 4 to ISO 5599-1
Pilot air port 14		Sub-base size 4 to ISO 5599-1
Type of mounting		On sub-base Via through-hole and screw
Ambient temperature		-10 °C ... 60 °C
Sound pressure level		85 dB(A)
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time off		170 ms
lap		Positive overlap
Flow direction		Reversible
ISO code		408
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		82 mm
Type of reset		Mechanical spring
Operating pressure		-0,9 bar ... 16 bar
Standard nominal flow rate		4.800 l/min
Type of actuation		Pneumatic

Material seals		NBR
Pneumatic connection, port 5		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 4 to ISO 5599-1
Pilot air port 12		Sub-base size 4 to ISO 5599-1
Product weight		2.000 g
Pilot medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Media temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Switching time on		50 ms
Pilot pressure		3 bar ... 16 bar
Symbol		00991021
Type of piloting		Direct
Manual override		None
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		18 mm
Design		Piston gate valve
pneumatic working port		Sub-base size 4 to ISO 5599-1 G3/4
Construction width		76 mm
Valve function		5/3 exhausted
