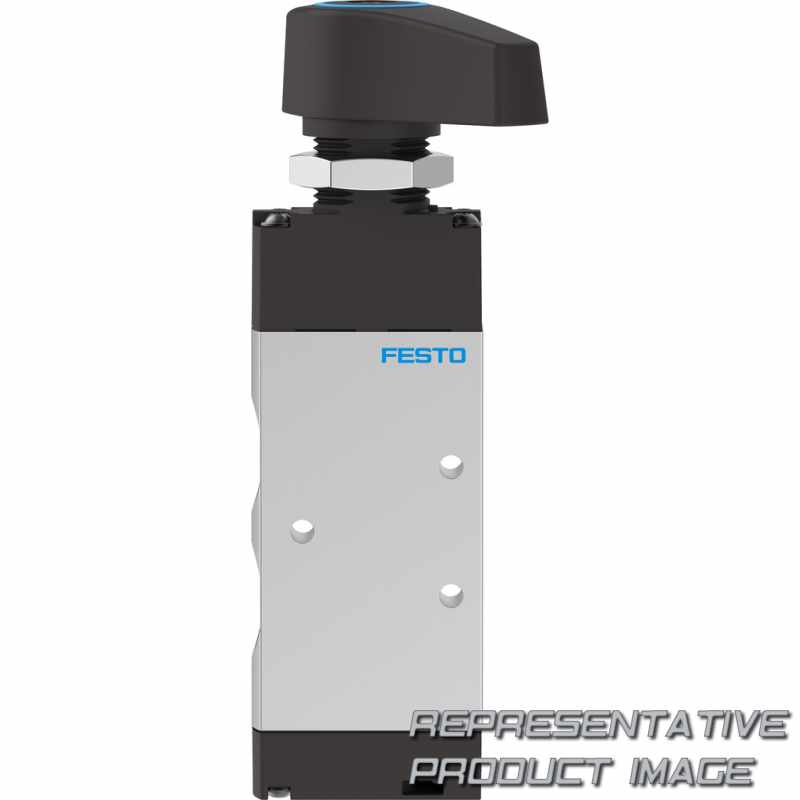

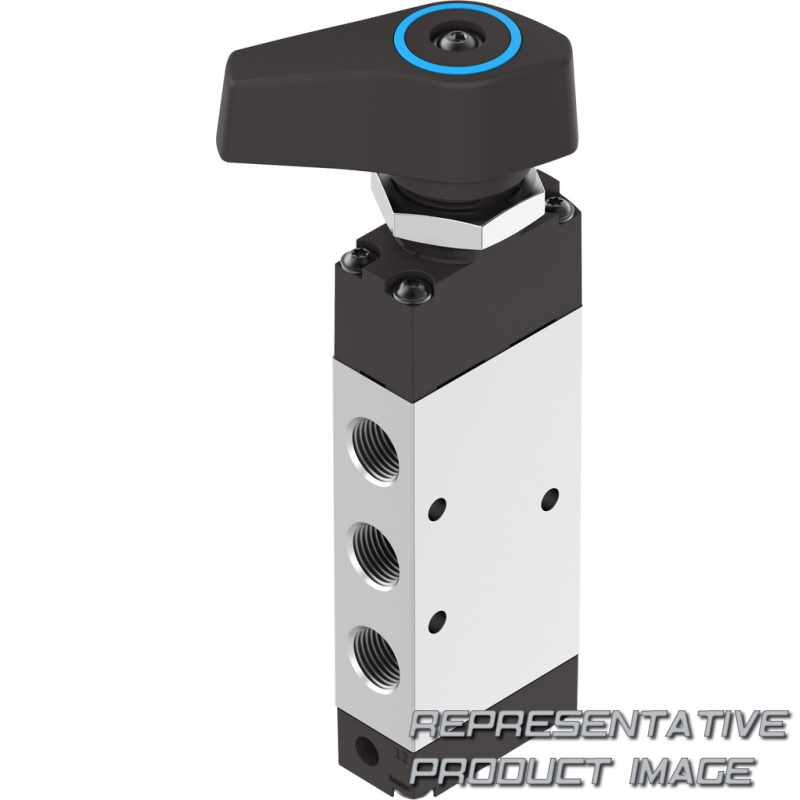

| Material lever | PA-reinforced | ||
| Material seals | NBR | ||
| Note on materials | RoHS-compliant | ||
| Pneumatic connection, port 4 | G1/4 | ||
| Pneumatic connection, port 2 | G1/4 | ||
| Type of mounting | Front panel mounting With through-hole Either: | ||
| Max. lateral force on actuation | 200 N | ||
| Actuating torque | 0,7 Nm | ||
| Media temperature | -10 °C ... 60 °C | ||
| Corrosion resistance class CRC | 1 - Low corrosion stress | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] | ||
| Max. switching frequency | 0,5 Hz | ||

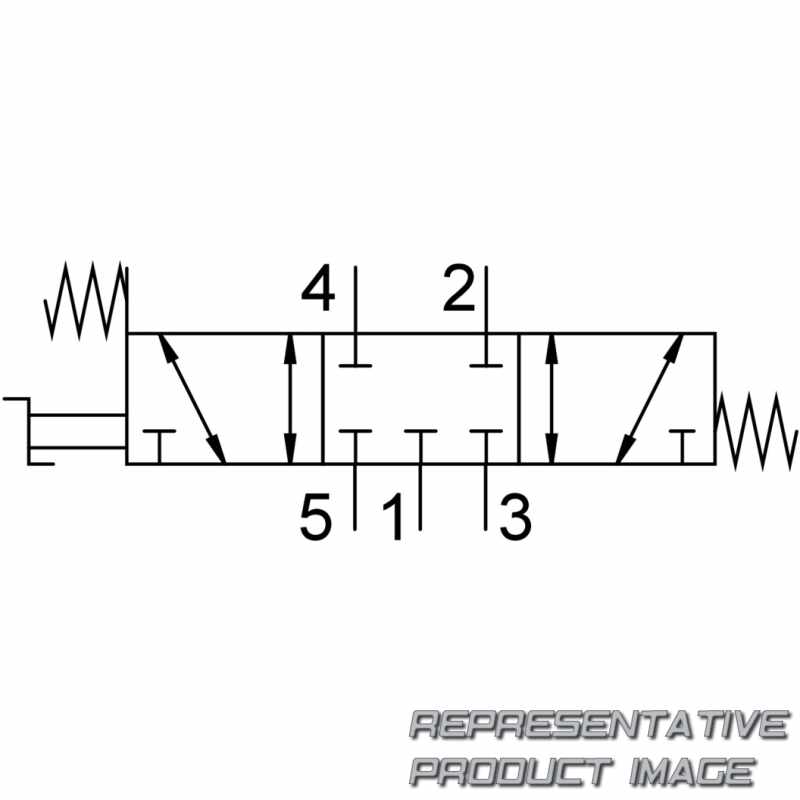

| Symbol | 00995890 | ||
| Type of piloting | Direct | ||
| Sealing principle | Soft | ||
| Exhaust-air function | With flow control option | ||
| Type of reset | Mechanical spring | ||
| Operating pressure | -0,95 bar ... 10 bar | ||
| Standard nominal flow rate | 1.200 l/min | ||
| Type of actuation | Manual |
| Material housing | Anodised wrought aluminium alloy | ||
| Material cover | PA-reinforced | ||
| Pneumatic connection, port 5 | G1/4 | ||
| Pneumatic connection, port 3 | G1/4 | ||
| Pneumatic connection, port 1 | G1/4 | ||
| Product weight | 268 g | ||
| Max. force on actuation | 200 N | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| Explosion protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | ||
| lap | Positive overlap | ||
| Flow direction | Reversible | ||
| Mounting position | optional | ||
| Instructions on use | Actuate manually only | ||
| Nominal size | 7 mm | ||
| Design | Piston gate valve | ||
| pneumatic working port | G1/4 | ||
| Construction width | 20 mm | ||
| Valve function | 5/3 closed |
