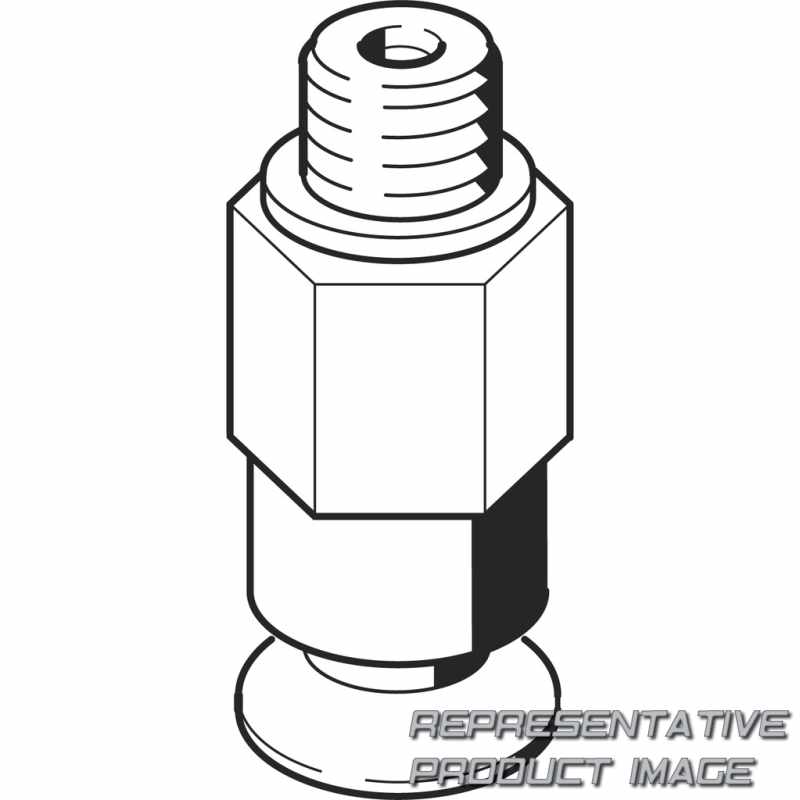

FESTO 1385610 suction cup complete

Name: 1385610 FESTO
Brand: FESTO
SKU: 682155-en-gbp
Price: 12.78 GBP
Availability: InStock

VAS-10-M5-SI-B

£12.78

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material (SI)	Silicone
Special material properties	None
007 (B)	B-series

Material suction cup		VMQ (silicone)
Material screw-in stud		Wrought aluminium alloy
Colour		Transparent
Type of mounting		Via vacuum port
Holding force at nominal operating pressure		3,7 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Symbol		00991485
Position of connection		Top
Suction cup diameter		10 mm
Height compensator for suction cup		1,1 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		60 +/- 5
Vacuum connection		M5
Product weight		2 g
Ambient temperature		-40 °C ... 200 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Mounting position		optional
Suction cup volume		0,12 cm³
Nominal size		2 mm
