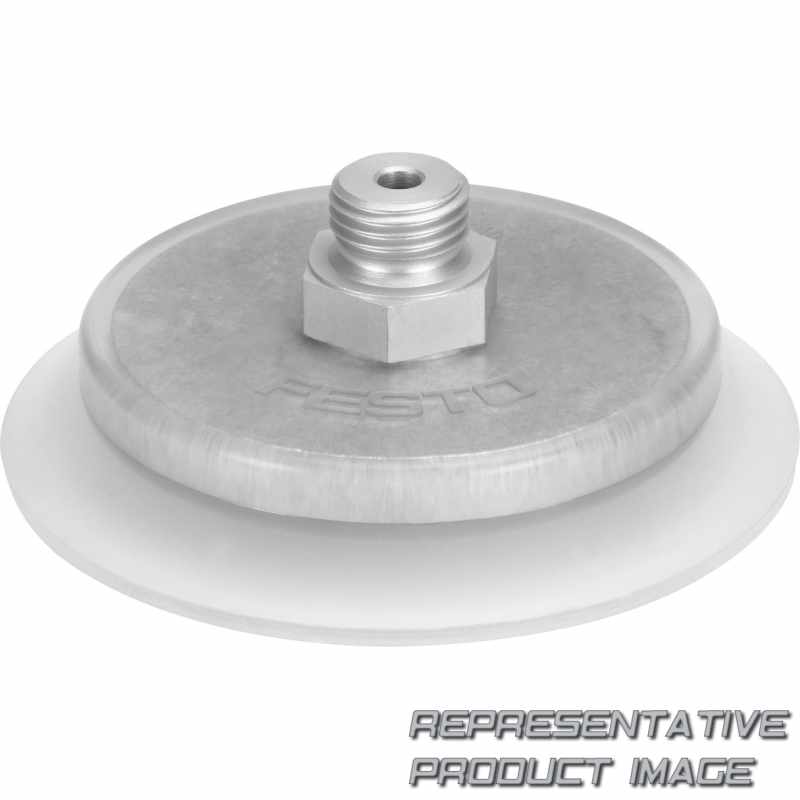

FESTO 1382165 suction cup complete

Name: 1382165 FESTO
Brand: FESTO
SKU: 687656-en-gbp
Price: 37.98 GBP
Availability: InStock

VAS-75-1/4-SI-B

£37.98

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material (SI)	Silicone
Special material properties	None
007 (B)	B-series

Material suction cup		VMQ (silicone)
Material screw-in stud		Wrought aluminium alloy
Colour		Transparent
Type of mounting		Via vacuum port
Holding force at nominal operating pressure		245 N
Suitable for use with food		See supplementary material information
Operating medium		Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Operating pressure		-0,95 bar ... 0 bar
Symbol		00991485
Position of connection		Top
Suction cup diameter		75 mm
Height compensator for suction cup		3,5 mm

Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Shore hardness		60 +/- 5
Vacuum connection		G1/4
Product weight		62 g
Ambient temperature		-40 °C ... 200 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Nominal operating pressure		-0,7 bar
Suction cup shape		Round, flat
Mounting position		optional
Suction cup volume		18,3 cm³
Nominal size		4 mm
