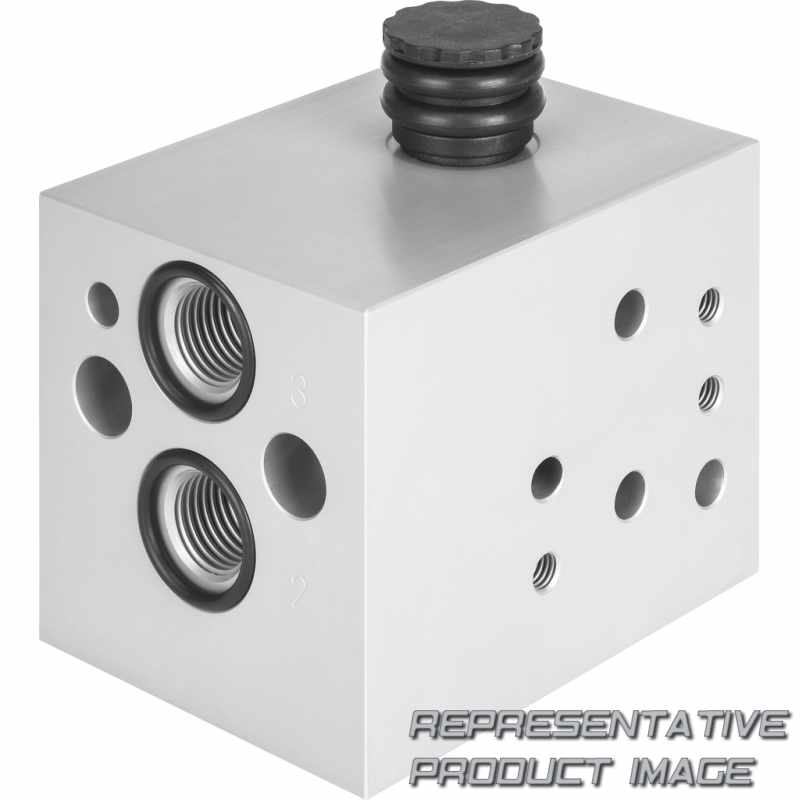

FESTO 3580505 sub-base

Name: 3580505 FESTO
Brand: FESTO
SKU: 700618-en-gbp
Price: 212.51 GBP
Availability: InStock

VABS-S7-RB-B-G14-V14-A

£212.51 1 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	0 bar ... 10 bar
Mounting Position	optional

Pneumatic connection	G1/4

Material seals		NBR
Note on materials		Contains paint-wetting impairment substances RoHS-compliant
Pneumatic connection, port 2		Flange 1/4 NAMUR port pattern
Pilot air port 12		G1/4
Degree of protection		IP65
Operating medium		Compressed air to ISO 8573-1:2010 [-:-:-]
Operating pressure		0 bar ... 10 bar
Mounting position		optional

Material sub-base		Ematal coated aluminium
Pneumatic connection, port 3		G1/4
Pneumatic connection, port 1		G1/4
Type of mounting		With through-hole
Corrosion resistance class CRC		4 - Very high corrosion stress
Explosion protection		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Pilot air supply		External Internal
