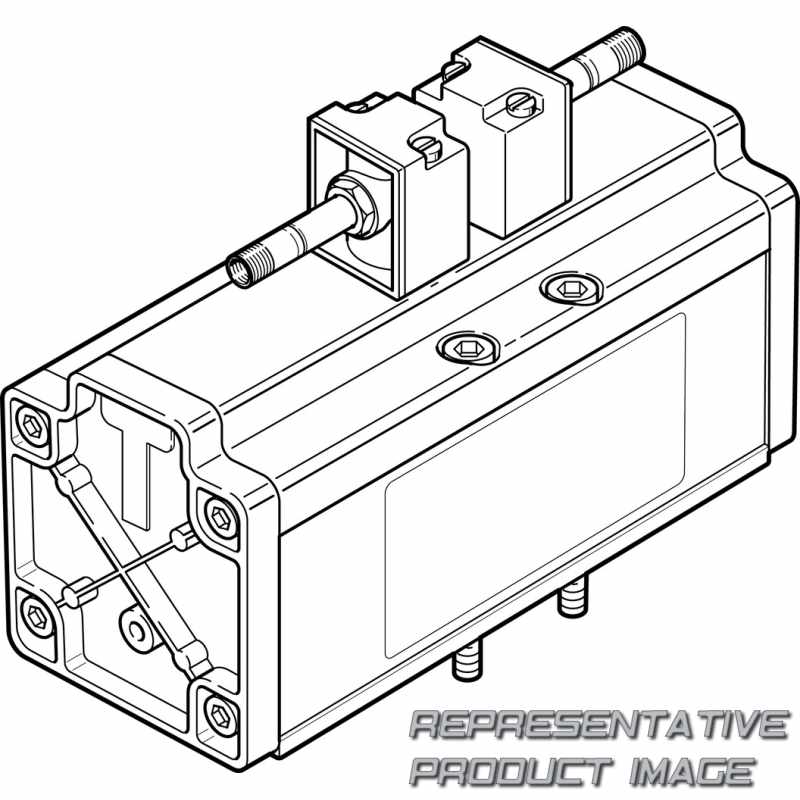

FESTO 14547 solenoid valve

Name: 14547 FESTO
Brand: FESTO
SKU: 673054-en-gbp
Price: 729.41 GBP
Availability: SoldOut

MDH-5/3E-3/4-D-4

£729.41

Limited stock only available on quotation

Specifications

Material housing		Aluminium
Note on materials		RoHS-compliant
Pneumatic connection, port 4		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 2		Sub-base size 4 to ISO 5599-1
Pilot exhaust port 84		M5
Type of mounting		On sub-base Via through-hole and screw
Ambient temperature		-10 °C ... 50 °C
Media temperature		-10 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Switching time on		85 ms
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Manual override		Non-detenting
Mounting position		optional
Exhaust-air function		With flow control option
Nominal size		18 mm
CE marking (see declaration of conformity)		To UK regulations for electrical equipment
Type of reset		Mechanical spring
Operating pressure		3 bar ... 16 bar
pneumatic working port		Sub-base size 4 to ISO 5599-1 G3/4
Construction width		76 mm
Valve function		5/3 exhausted

Material seals		NBR
Pneumatic connection, port 5		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 3		Sub-base size 4 to ISO 5599-1
Pneumatic connection, port 1		Sub-base size 4 to ISO 5599-1
Pilot exhaust port 82		M5
Product weight		2.600 g
Sound pressure level		85 dB(A)
LABS (PWIS) conformity		VDMA24364-B1/B2-L
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Switching time off		290 ms
Symbol		00991082
Pilot air supply		Internal
ISO code		457
Conforms to standard		ISO 5599-1
Sealing principle		Soft
Grid dimension		82 mm
Degree of protection		IP65
CE mark (see declaration of conformity)		To EU Low Voltage Directive
Design		Piston gate valve
Operating voltage		Via solenoid coil, must be ordered separately
Standard nominal flow rate		4.800 l/min
Type of actuation		Electric
