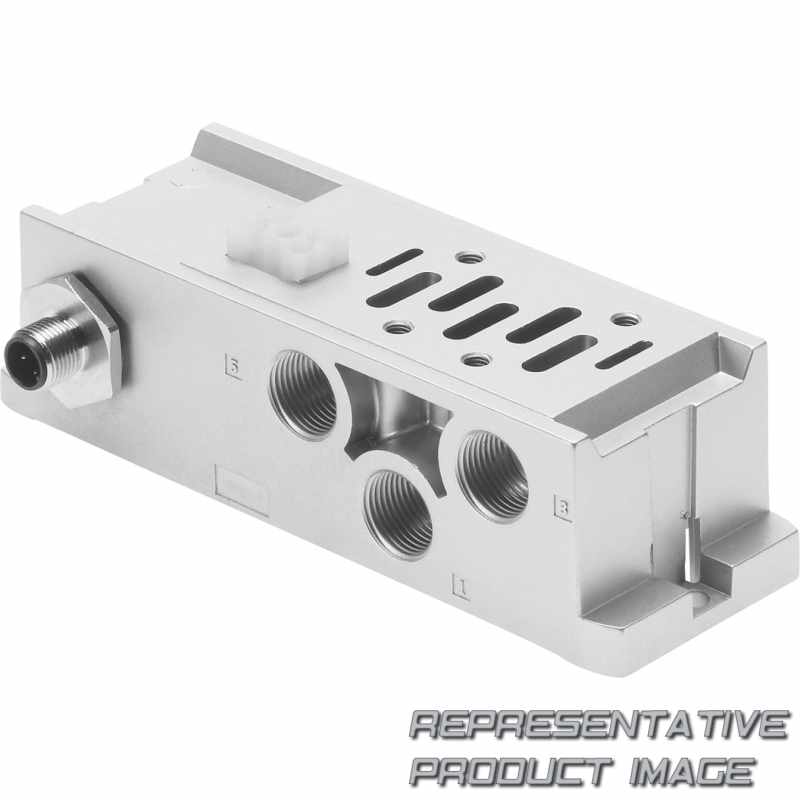

FESTO 546101 sub-base

Name: 546101 FESTO
Brand: FESTO
SKU: 687113-en-gbp
Price: 67.75 GBP
Availability: InStock

VABS-S2-1S-G38-R3

£67.75

2 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	-0,9 bar ... 10 bar
Mounting Position	optional

Width	42 mm
Weight	386g

Material sub-base		Die-cast aluminium
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		0 - No corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Current rating at 40°C		2 A
Operational voltage range DC		24 V
Pilot air supply		External
Based on standard		ISO 5599-2

Note on materials		RoHS-compliant
Product weight		386 g
Degree of protection		IP65 NEMA 4 In assembled state
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Pollution degree		3
Immunity to surge		0,8 kV
Operating pressure		-0,9 bar ... 10 bar
Mounting position		optional
Construction width		42 mm
