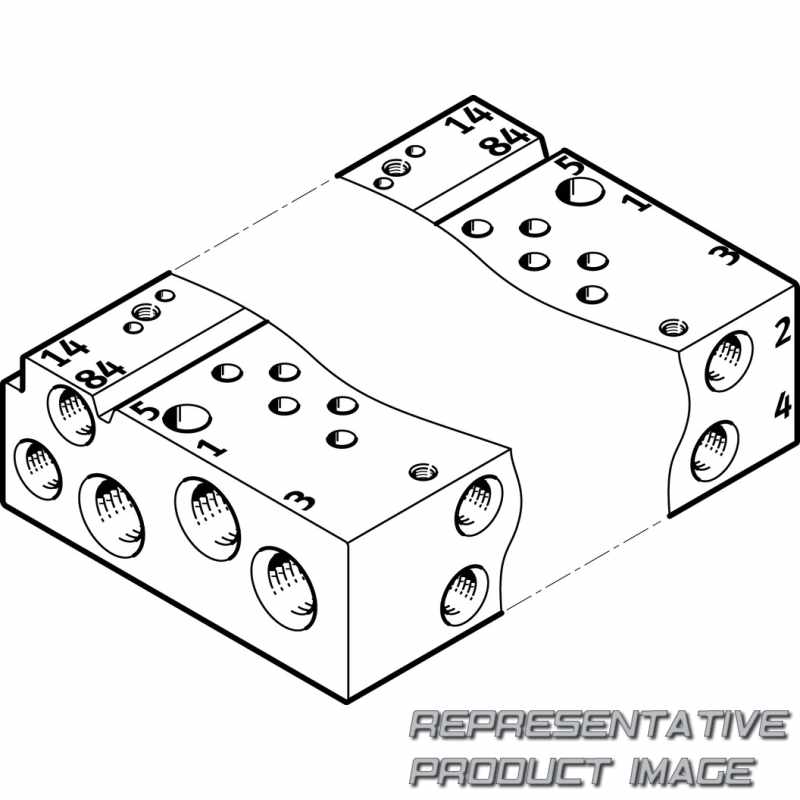

FESTO 566546 manifold rail

Name: 566546 FESTO
Brand: FESTO
SKU: 664291-en-gbp
Price: 28.67 GBP
Availability: InStock

VABM-L1-10AW-M7-2

£28.67 ~~£56.28~~ -49%

1 pcs. with 1 to 3 days delivery to United States

Specifications

Operating Pressure	-0,9 bar ... 10 bar
Pneumatic connection	M7

Weight	60g

Material manifold		Wrought aluminium alloy
Pneumatic connection, port 5		M7
Pneumatic connection, port 3		M7
Pneumatic connection, port 1		M7
Pilot air port 12/14		M5
Max. tightening torque wall mounting		1,5 Nm
Max. tightening torque H-rail mounting		1,5 Nm
Approval		RCM trademark c UL us - Recognized (OL)
Max. number of valve positions		16

Note on materials		RoHS-compliant
Pneumatic connection, port 4		M5
Pneumatic connection, port 2		M5
Pilot exhaust port 82/84		M5
Product weight		60 g
Max. tightening torque for valve mounting		0,45 Nm
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating pressure		-0,9 bar ... 10 bar
Grid dimension		10,5 mm
