| Material housing | Anodised aluminium | ||
| Pneumatic connection, port 3 | G1/8 | ||
| Pneumatic connection, port 1 | G1/8 | ||
| Product weight | 90 g | ||
| Actuating force | 28 N | ||
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) | ||

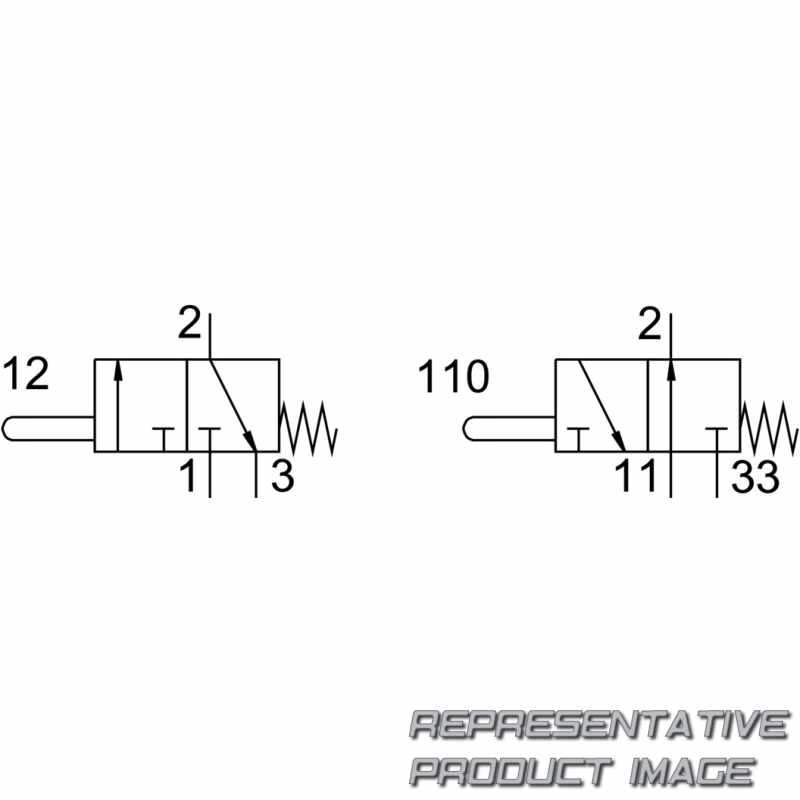

| Symbol | 00991832 | ||
| Nominal size | 3,5 mm | ||
| Operating pressure | -0,95 bar ... 8 bar | ||
| Standard nominal flow rate | 140 l/min | ||
| Valve function | 3/2-way, monostable, open/closed |
| Material seals | NBR | ||
| Pneumatic connection, port 2 | G1/8 | ||
| Type of mounting | With through-hole | ||
| Actuating force, normally closed | 37,53 N | ||
| Ambient temperature | -10 °C ... 60 °C | ||
| Operating medium | Compressed air to ISO 8573-1:2010 [-:-:-] | ||
| Type of piloting | Direct | ||
| Design | Piston seat | ||
| pneumatic working port | G1/8 | ||
| Type of actuation | Mechanical |
