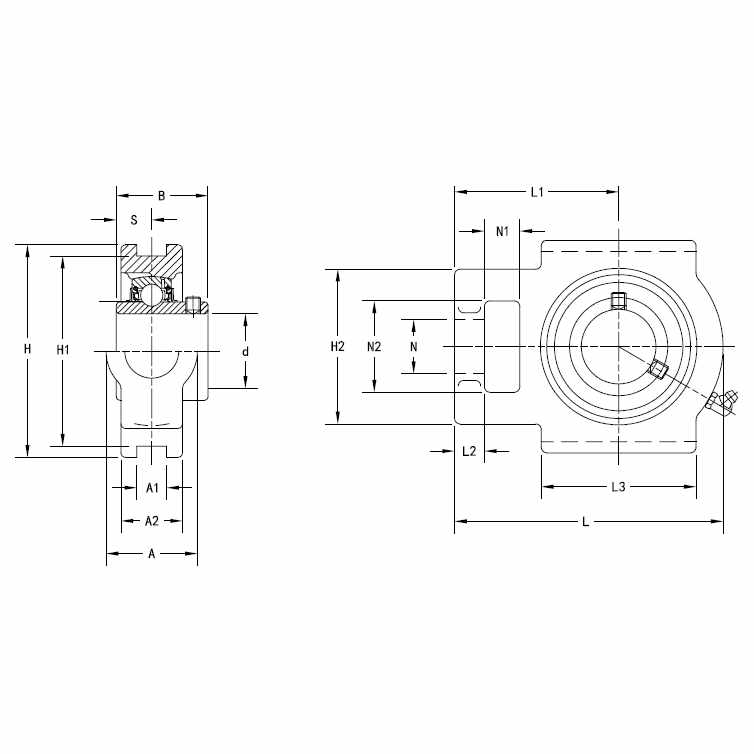

| Center of Bearing from End S | 19 | mm | |
| Opening Height N2 | 49 | mm | |
| Grease Nipple Size | A-1/4-28UNF | ||
| Slot Length L3 | 83 | mm | |
| Shaft Length L1 | 88 | mm | |
| Height H2 | 83 | mm | |
| Total Height H | 114 | mm | |
| Slot Width A1 | 16 | mm |
| Inner Ring Width B | 49.20 | mm | |
| Opening Width N1 | 19 | mm | |
| Adjustment Screw Bore N | 29 | mm | |
| Dimension L2 | 16 | mm | |
| Total Length L | 144 | mm | |
| Pitch Height H1 | 102 | mm | |
| Socket Width A2 | 33 | mm | |
| Housing Width A | 49 | mm |
| Weight | 2.50 | Kg | |
| Locking Style | Set Screw Locking | ||
| Shaft Size d | 40 | mm |
| Housing Construction | Take-Up | ||
| UPC Code | 87,796,077,782 | ||
| Bearing Number | UC208 |
