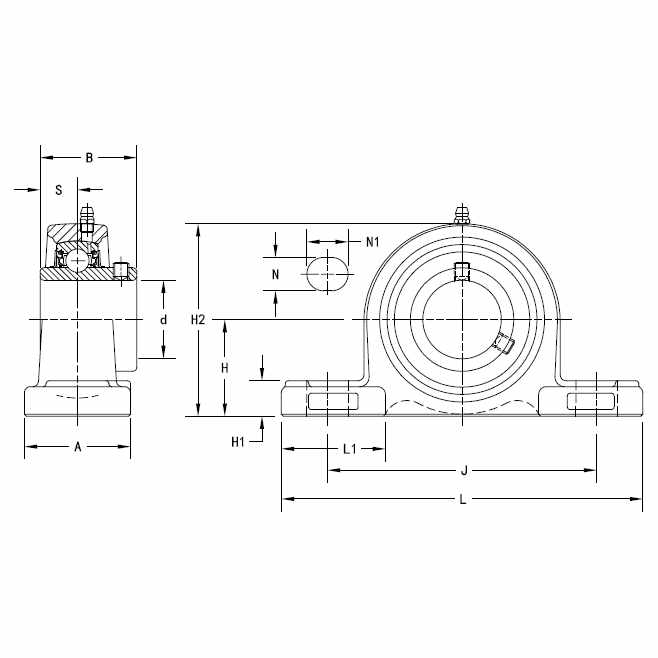

| Center of Bearing from End S | 19 | mm | |
| Dimension L1 | 60 | mm | |
| Foot Height H1 | 21 | mm | |
| Bolt Hole Size N | 20 | mm | |
| Housing Width A | 60 | mm | |
| Base to Center Height H | 57.20 | mm |
| Inner Ring Width B | 51.60 | mm | |
| Total Height H2 | 113 | mm | |
| Bolt Hole Length N1 | 22 | mm | |
| Bolt Hole Spacing J | 159 | mm | |
| Total Length L | 206 | mm |
| Weight | 2.90 | Kg | |
| Locking Style | Set Screw Locking | ||
| Shaft Size d | 50 | mm |

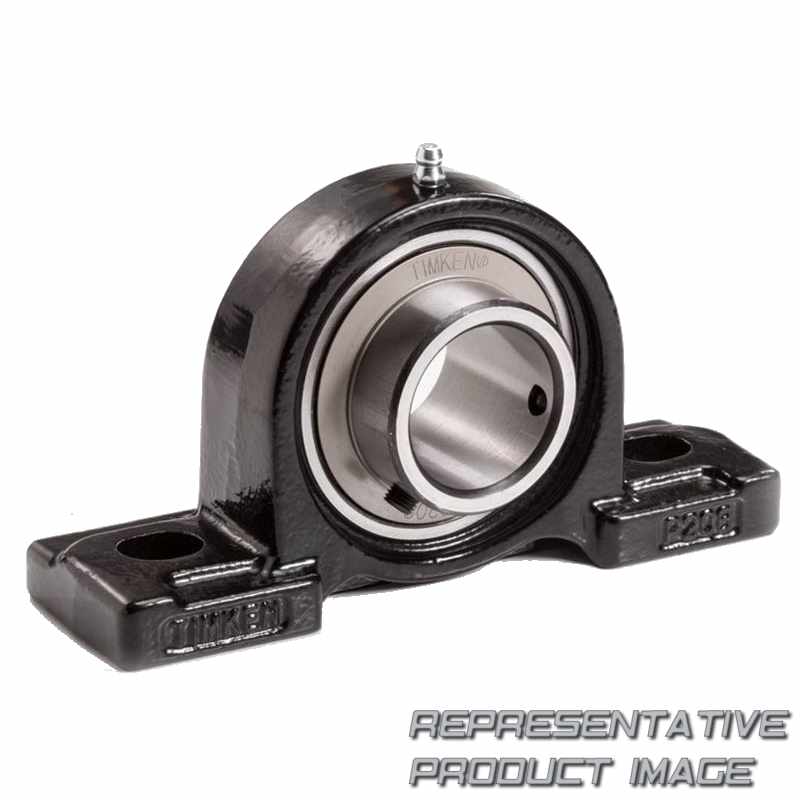

| Housing Construction | Two-Bolt Pillow Block | ||
| UPC Code | 87,796,072,435 | ||
| Bearing Number | UC210 |
