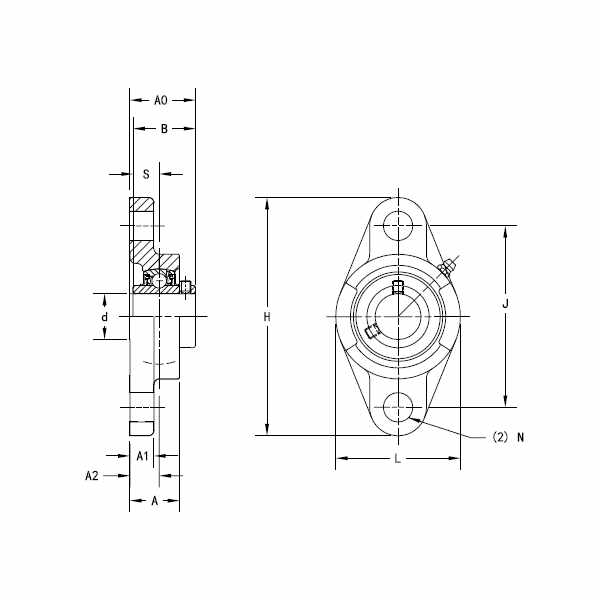

| Bolt Size | M10 | ||
| Center of Bearing from Bearing End S | 12.70 | mm | |
| Center of Bearing from Housing End A2 | 15 | mm | |
| Bolt Hole Size N | 12 | mm | |
| Housing Width A | 25.50 | mm | |
| Total Length H | 113 | mm |
| Dimension A0 | 33.30 | mm | |
| Inner Ring Width B | 31 | mm | |
| Flange Thickness A1 | 11 | mm | |
| Bolt Hole Spacing J | 90 | mm | |
| Total Height L | 60 | mm |
| Weight | 0.50 | Kg | |
| Locking Style | Set Screw Locking | ||
| Shaft Size d | 15 | mm |

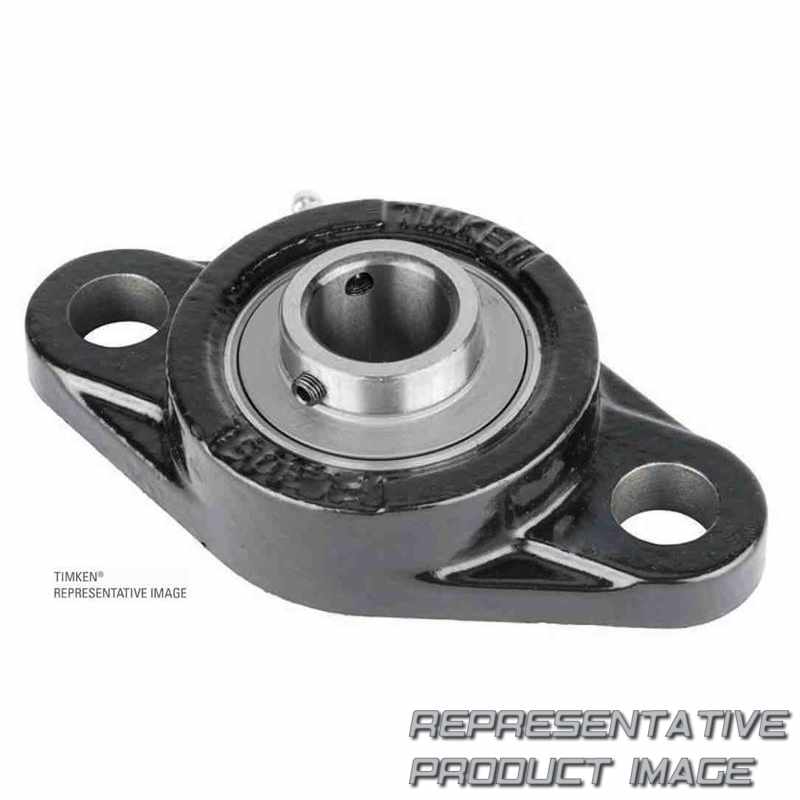

| Housing Construction | Two-Bolt Flange | ||
| UPC Code | 87,796,074,156 | ||
| Bearing Number | UC202 |
