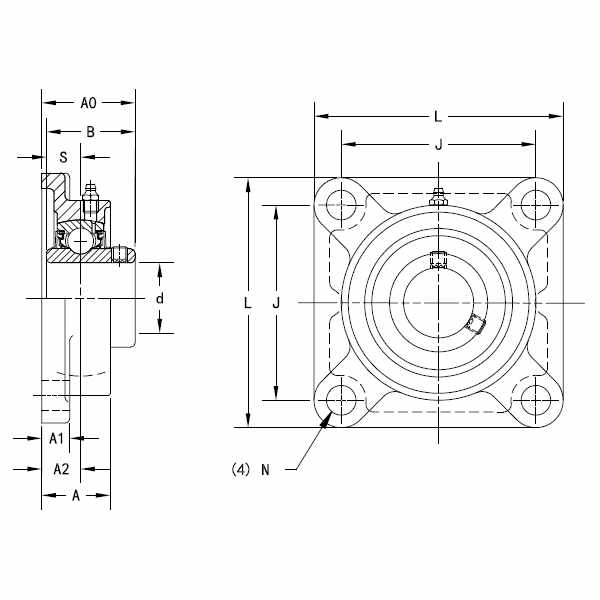

| Total Length L | 86 | mm | |
| Bolt Hole Spacing J | 64 | mm | |
| Flange Thickness A1 | 11 | mm | |
| Inner Ring Width B | 31 | mm | |
| Dimension A0 | 33.30 | mm | |
| Grease Nipple Size | A-1/4-28UNF |
| Housing Width A | 25.50 | mm | |
| Bolt Hole Size N | 12 | mm | |
| Center of Bearing from Housing End A2 | 15 | mm | |
| Center of Bearing from Bearing End S | 12.70 | mm | |
| Bolt Size | M10 |
| Bearing Number | UC202 | ||
| UPC Code | 87,796,139,916 | ||

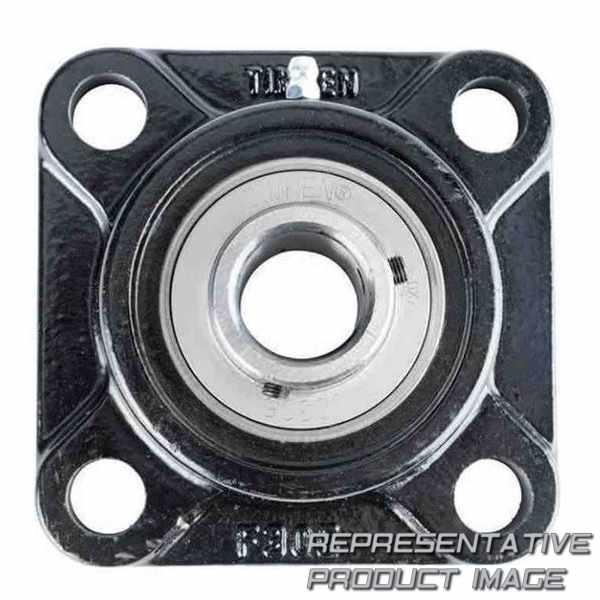

| Housing Construction | Four-Bolt Square Flange |
| Shaft Size d | 15 | mm | |
| Locking Style | Set Screw Locking | ||
| Weight | 0.60 | Kg |
