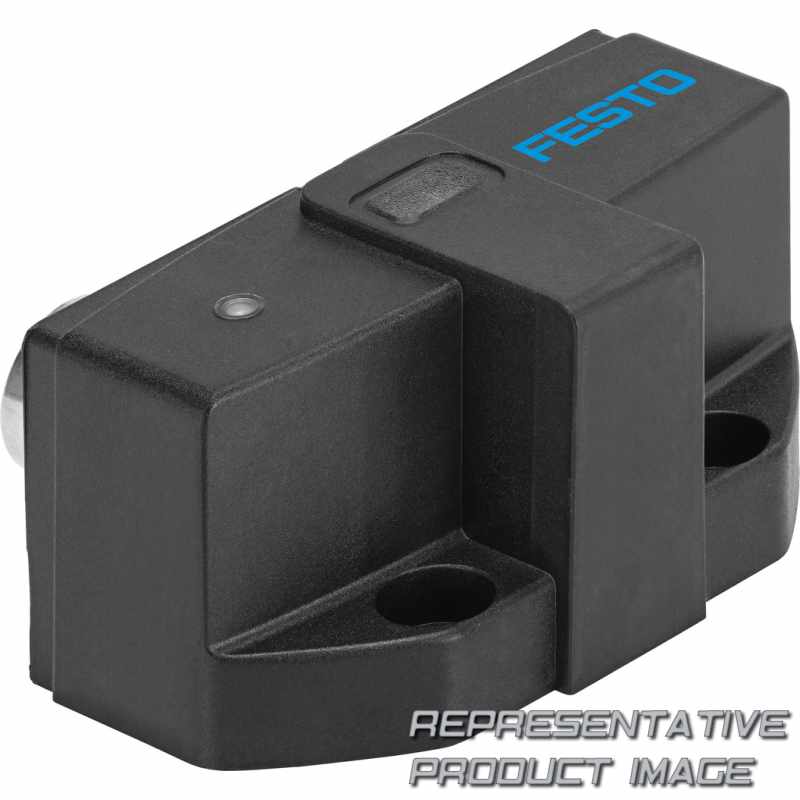

FESTO 3567908 sensorbox

Name: 3567908 FESTO
Brand: FESTO
SKU: 668934-en-gbp
Price: 209.88 GBP
Availability: InStock

SRBG-C1-N-1-AS-M12-M12

£209.88 2 pcs. with 1 to 3 days delivery to United States

Specifications

Electrical output 1 (AS)	AS-Interface
Electrical connection (M12)	Plug M12, A-coded
Electrical connection, valve (M12)	Plug M12, A-coded
EU certification	None

Pollution degree		3
Vibration resistance		Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Degree of protection		IP67
Status indication		LED yellow = valve switching status LED red = wire break/short circuit at valve
Ready status indication		Green LED
Material housing		PBT
Mounting position		optional
Electrical connection 1, connection pattern		00995599
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Electrical connection 1, cable outlet		Straight
No-load supply current		≤ 35 mA
AS-Interface, Product identification		IO code: D ID code: A ID1 code: 7 ID2 code: E
AS-Interface, Protocol version		V3.0
Max. switching capacity DC		2,5 W
Max. switching output voltage DC		26,4 V
Switching element function		N/C or N/O contact, switchable
Ambient temperature		-25 °C ... 70 °C
Note on materials		RoHS-compliant
CE mark (see declaration of conformity)		To EU EMC Directive
Based on standard		EN 60947-5-2 VDI/VDE 3845

LABS (PWIS) conformity		VDMA24364 zone III
Shock resistance		Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
Storage temperature		-25 °C ... 70 °C
Switching status indication		Yellow LED
Material screws		High-alloy stainless steel
Product weight		70 g
Type of mounting		Threaded
Electrical connection 1, number of connections/cores		4
Electrical connection 1, design		Round
Electrical connection 1, connection type		Plug and socket strip
Operational voltage range DC		26,5 V ... 31,6 V
AS-Interface, Adressing range		1A ... 31A (0) 1B ... 31B
Protocol		AS-Interface
Max. output current DC		100 mA
Max. switching frequency		100 Hz
Switching output		AS-Interface
Measuring principle		Inductive
KC mark		KC-EMV
Approval		RCM trademark c UL us (OL)
Design		Angular
