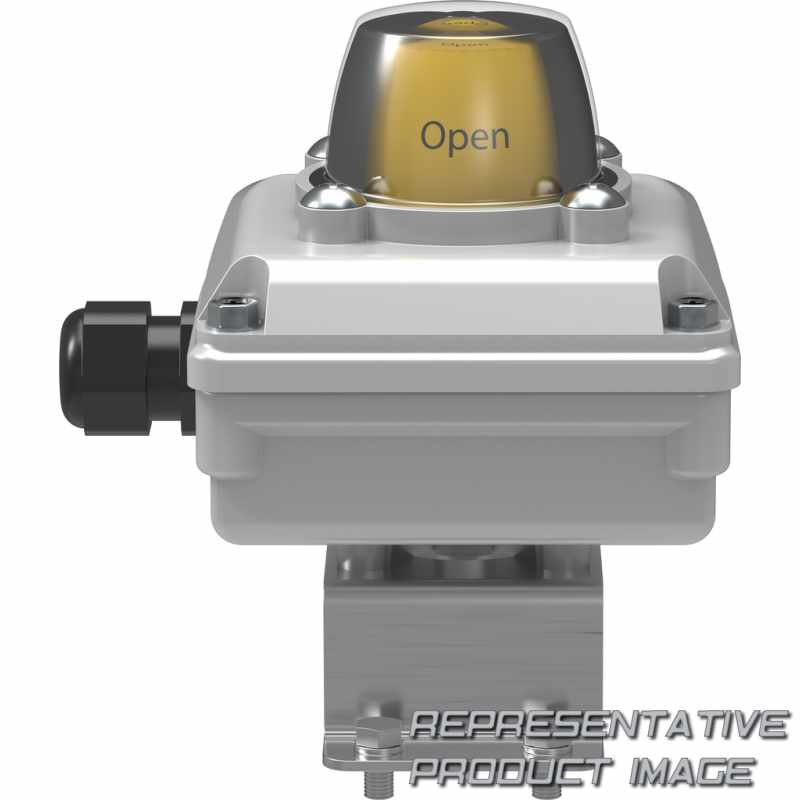

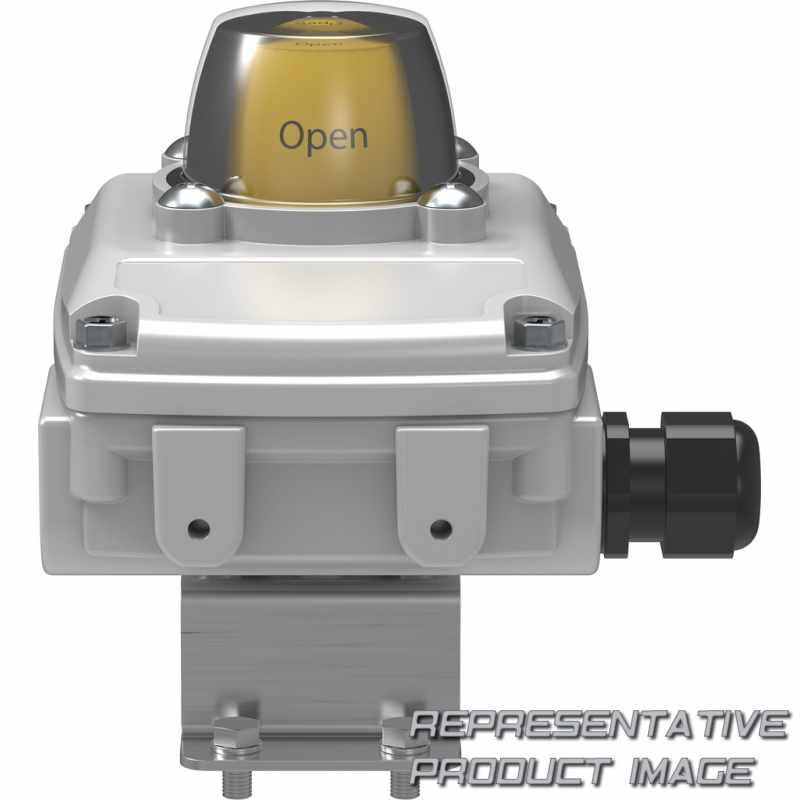

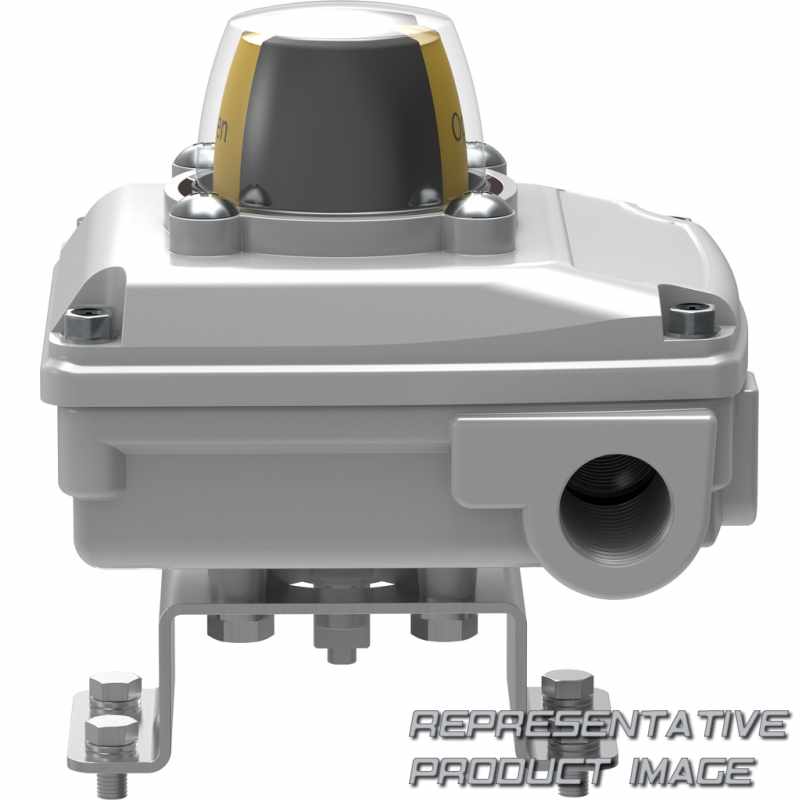

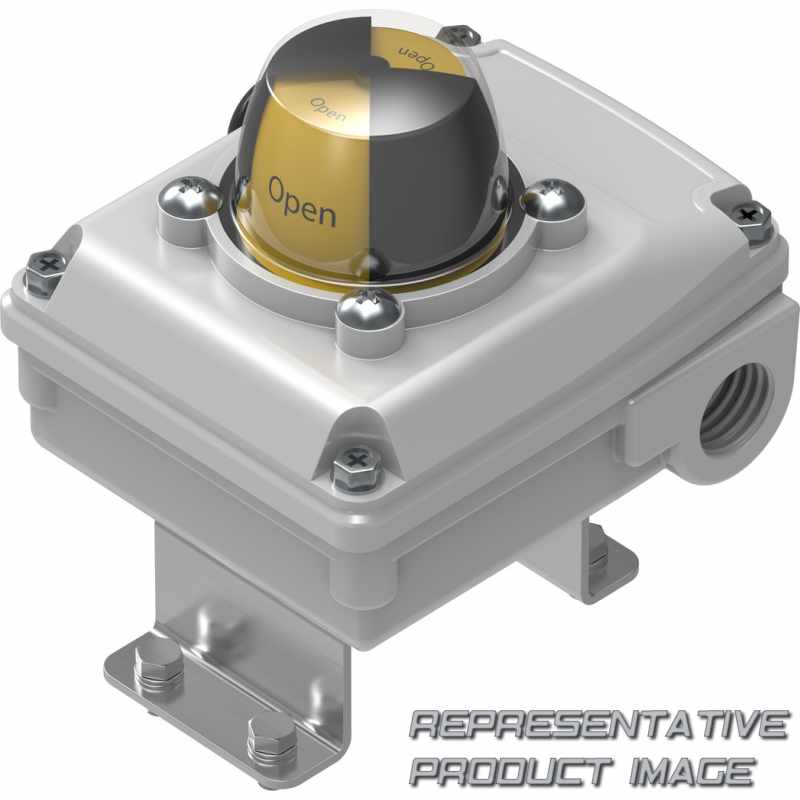

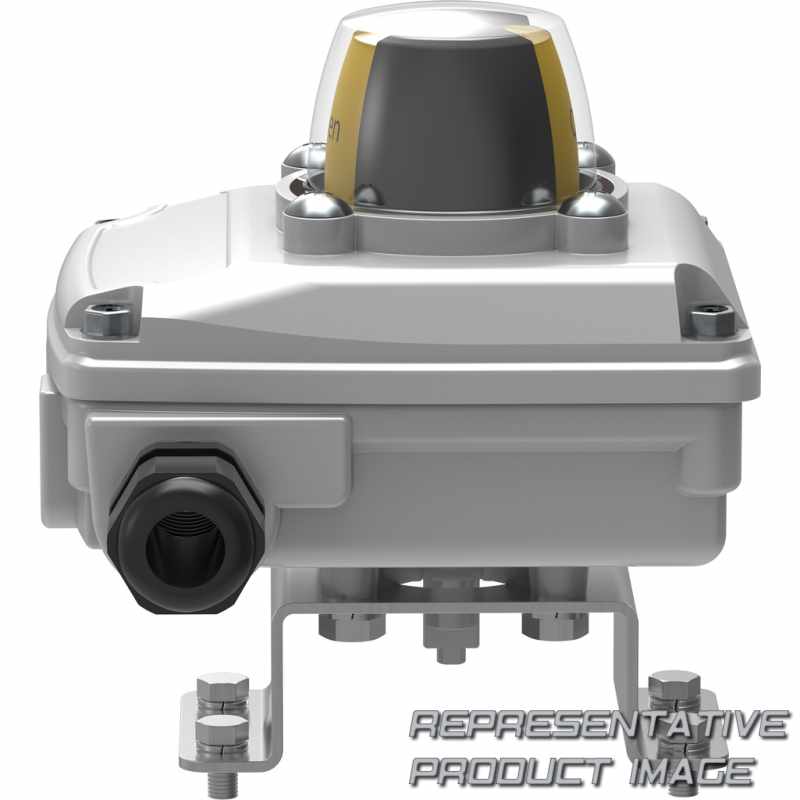

| Pollution degree | 3 | ||
| Corrosion resistance class CRC | 0 - No corrosion stress | ||
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 | ||
| Storage temperature | -20 °C ... 50 °C | ||
| Position indicator | Yellow/red | ||
| Material disc | High-alloy stainless steel | ||
| Material cable gland | PA | ||
| Material mounting bracket | High-alloy stainless steel | ||
| Material screws | High-alloy stainless steel | ||
| Material seals | NBR | ||
| Housing colour | grey | ||
| Mounting position | optional | ||
| Dimensions (W x L x H) | 127 mm x 98 mm x 122 mm | ||
| Cable fitting | M20x1.5 | ||
| Electrical connection 1, number of connections/cores | 10 | ||
| Electrical connection 1, cable outlet | Straight | ||
| Electrical connection | Screw terminal | ||
| No-load supply current | ≤ 15 mA | ||
| Short circuit current rating | Pulsed | ||
| Voltage drop | ≤ 3 V | ||
| Max. switching frequency | 1.000 Hz | ||
| Switching output | PNP | ||
| Measuring principle | Inductive | ||
| Note on materials | RoHS-compliant | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| LABS (PWIS) conformity | VDMA24364 zone III | ||
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 | ||
| Degree of protection | IP67 NEMA 4/4X | ||
| Setting range of angular detection | 0 deg ... 90 deg | ||
| Material cover cap | PC | ||
| Material snap ring | High-alloy stainless steel | ||
| Material indicator | PC | ||
| Material blanking plug | PA | ||
| Material shaft | High-alloy stainless steel | ||
| Material housing | Die-cast aluminium | ||
| Product weight | 800 g | ||
| Connection point for positioner and position sensor conforms to standard | VDI/VDE 3845 size AA 1 | ||
| Permissible cable diameter | 5 mm ... 13 mm | ||
| Connectable nominal cross section conductor | 0,25 mm² ... 2,5 mm² | ||
| Electrical connection 1, connector system | Spring-loaded terminal | ||
| Electrical connection 1, connection type | Terminal strip | ||
| Reverse polarity protection | For all electrical connections | ||
| Operational voltage range DC | 10 V ... 30 V | ||
| Off-state current | 0 mA ... 0,5 mA | ||
| Max. output current DC | 100 mA | ||
| Switching element function | N/O contact | ||
| Ambient temperature | -20 °C ... 70 °C | ||
| Safety Integrity Level (SIL) | SIL 2 | ||
| KC mark | KC-EMV | ||
| Approval | RCM trademark c CSA us (OL) |
