FESTO 8003351 pressure sensor

Name: 8003351 FESTO
Brand: FESTO
SKU: 675328-en-gbp
Price: 101.86 GBP
Availability: InStock

SPAU-V1R-H-Q4D-LK-V-M12D

£101.86 ~~£135.98~~ -25%

available with 7 to 15 days delivery to United States

Specifications

Electrical output 1 (LK)	IO-Link®
Electrical output 2 (V)	0 ... 10 V
Electrical connection (M12)	Plug M12, A-coded
Electrical outlet direction (D)	Underneath
Electrical accessories	None
Protective devices	None
Certifi cate	None

LABS (PWIS) conformity		VDMA24364-B1/B2-L
Degree of protection		IP65 IP67
Setting range threshold value		0 % ... 100 %
Setting options		IO-Link®
Display type		LED
Pneumatic connection		QS-4
Type of mounting		With H-rail
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Plugs
Operational voltage range DC		20 V ... 30 V
IO-Link, Min. cycle time		3 ms
IO-Link, Process data length IN		2 bytes
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Min. load resistance voltage output		10 kOhm
Rise time		3 ms
Max. output current		100 mA
Switching function		Freely programmable
Temperature coefficient in ± %FS/K		0,05 %FS/K
Accuracy in ± % FS		1,5 %FS
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
Max. overload pressure		5 bar
Start value for pressure measuring range		0 bar
Measured variable		Relative pressure
KC mark		KC-EMV
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995411

Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range hysteresis		0 % ... 90 %
Protection against tampering		IO-Link
Displayable units		MPa bar inH2O inHg kPa kgf/cm² mmHg psi
Product weight		65 g
Mounting position		optional

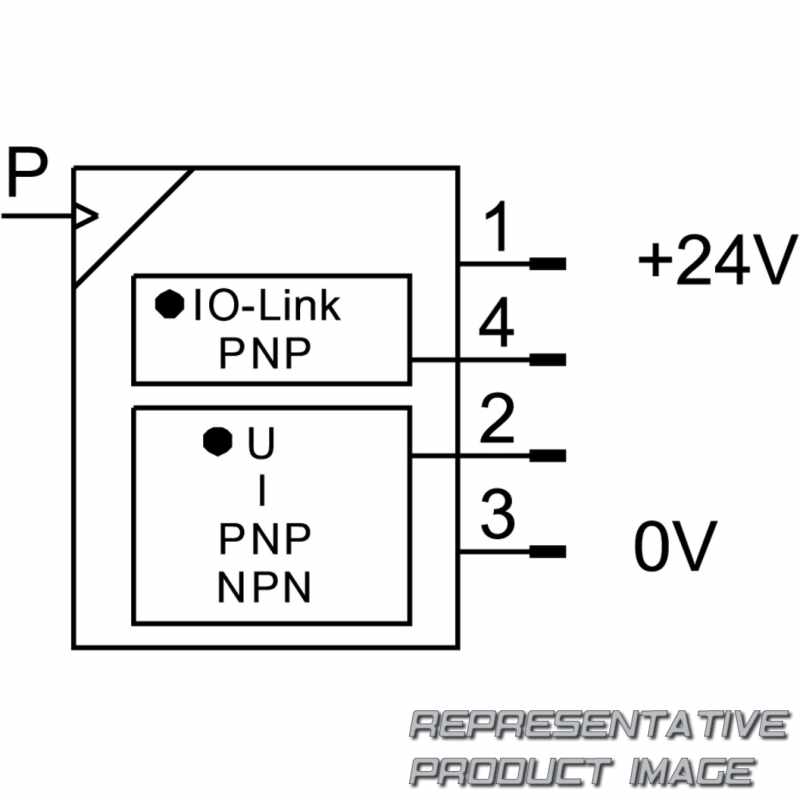

Electrical connection 1, connection pattern		00995386
Electrical connection 1, connector system		M12x1, A-coded to EN 61076-2-101
Reverse polarity protection		For all electrical connections
IO-Link, Data storage required		500 Byte
IO-Link, Process data content IN		14 bit PDV (pressure measurement value) 2 bit BDC (pressure monitoring)
IO-Link, Process data length OUT		0 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Short circuit current rating		yes
Max. load resistance current output		500 Ohm
Analogue output		0 - 10 V
Switching element function		N/C or N/O contact, switchable
Switching output		2xPNP
Repetition accuracy in ± %FS		0,3 %FS
Resolution ADC		12 bit
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
End value for pressure measuring range		-1 bar
Measurement method		Piezoresistive pressure sensor
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)
