FESTO 8035551 pressure sensor

Name: 8035551 FESTO
Brand: FESTO
SKU: 663997-en-gbp
Price: 113.72 GBP
Availability: InStock

SPAN-B2R-M5F-PN-PN-L1

£113.72 8 pcs. with 1 to 3 days delivery to United States

Specifications

Suitability for the production of Li-ion batteries		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range hysteresis		0 % ... 90 %
Protection against tampering		PIN code
Displayable units		MPa bar inH2O inHg kPa kgf/cm² mbar mmHg psi
Material in contact with the medium		FPM High-alloy stainless steel
Product weight		34 g
Mounting position		optional
Electrical connection 1, connection pattern		00995428
Electrical connection 1, connector system		Connection pattern L1J
Reverse polarity protection		For all electrical connections
Short circuit current rating		yes
Switching element function		N/C or N/O contact, switchable

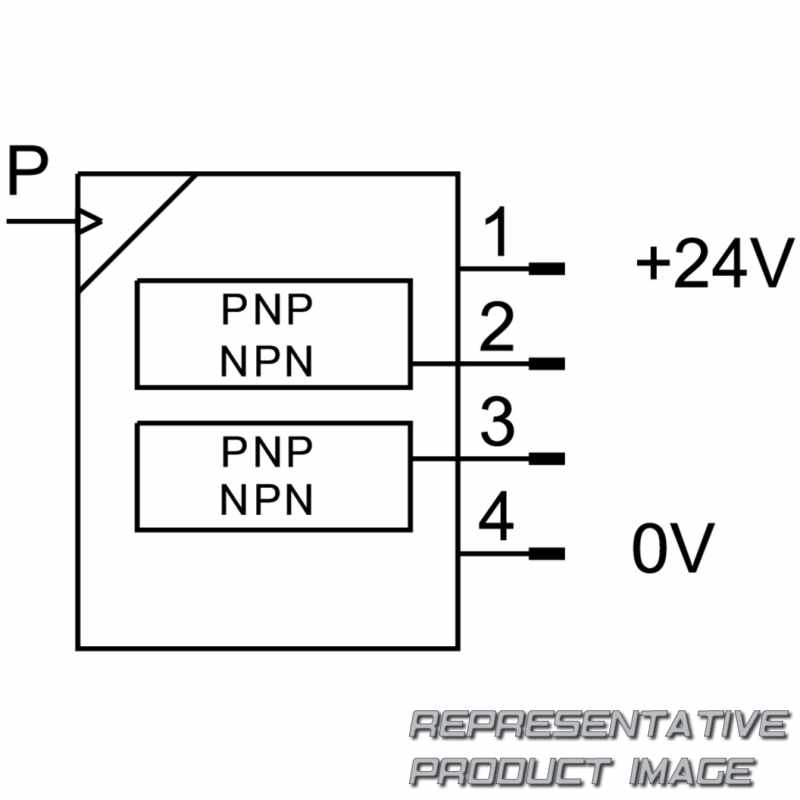

Switching output		2 x PNP or 2 x NPN, switchable
Repetition accuracy in ± %FS		0,3 %FS
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
Overload pressure		72,5 psi
End value for pressure measuring range		14,5 psi
Measurement method		Piezoresistive pressure sensor
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)

LABS (PWIS) conformity		VDMA24364-B1/B2-L
Degree of protection		IP40
Setting range threshold value		0 % ... 100 %
Setting options		Teach-in Via display and keys

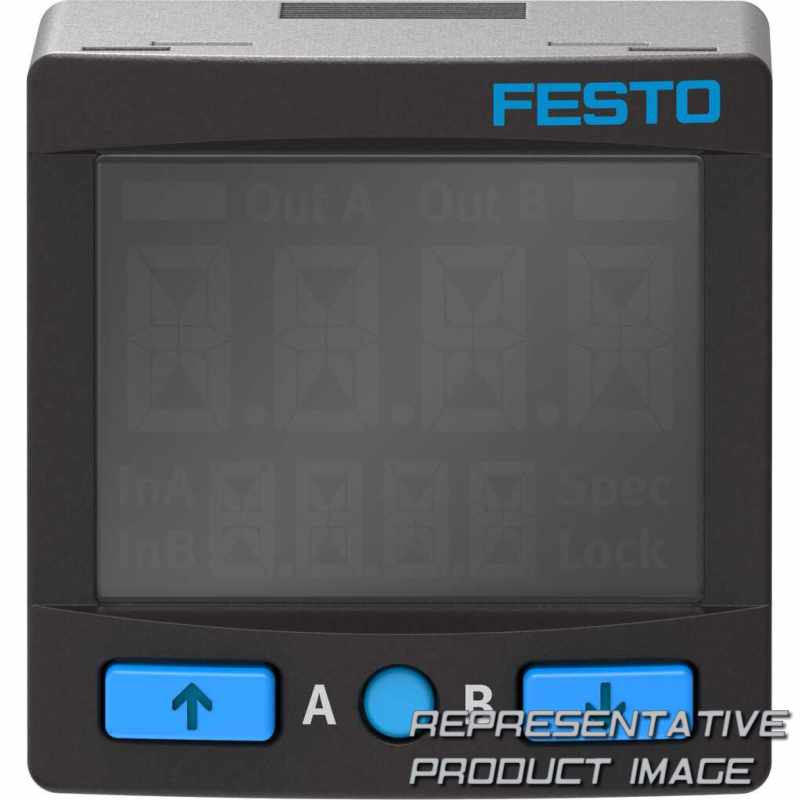

Display type		Illuminated LCD
Material housing		PA-reinforced

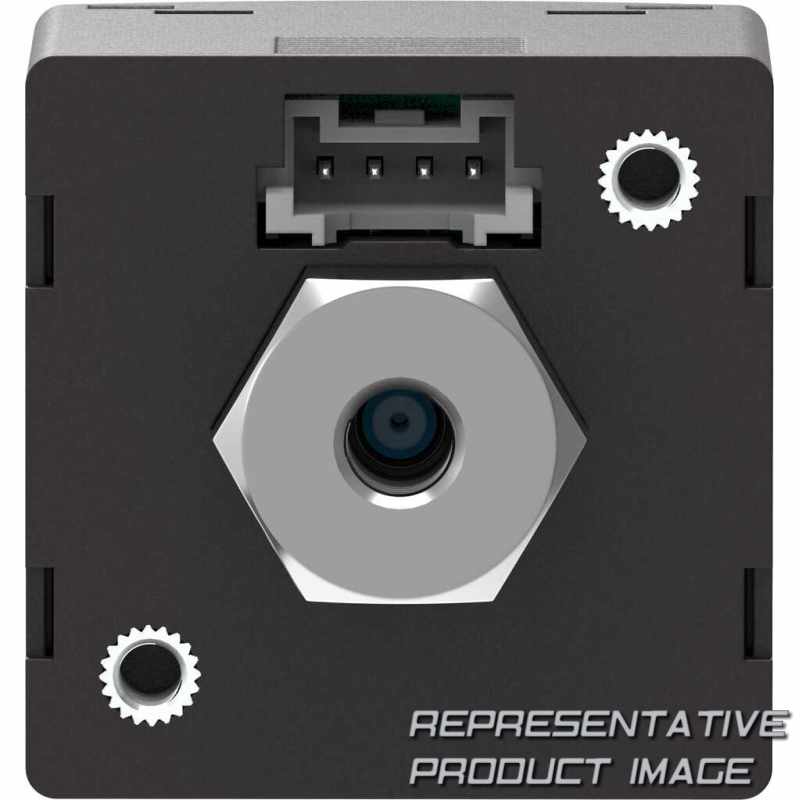

Pneumatic connection		Female thread M5
Type of mounting		Front panel mounting Via wall/surface bracket
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Plugs
Operational voltage range DC		15 V ... 30 V
Max. output current		100 mA
Switching function		Window comparator Threshold value comparator Auto difference monitoring
Temperature coefficient in ± %FS/K		0,05 %FS/K
Accuracy in ± % FS		1,5 %FS
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Max. overload pressure		5 bar
Start value for pressure measuring range		-14,5 psi
Measured variable		Relative pressure
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995686
