8003300 Festo

FESTO 8003300 pressure sensor

Name: 8003300 FESTO
Brand: FESTO
SKU: 724763-en-gbp
Price: 113.73 GBP
Availability: InStock

SPAN-B2R-G18F-PN-PN-L1

£113.73

1 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SPAN)	Pressure sensor
Product version	Standard
Pressure measuring range (B2)	-1 ... 1 bar
Pressure inlet (R)	Relative pressure
Pneumatic connection (G18)	G1/8
Thread type (F)	Female
Thread material	Standard
Electrical output 1 (PN)	PNP/NPN

Electrical output 2 (PN)	PNP or NPN
Electrical connection (L1)	Plug type L1
Mounting accessories	None
Electrical adapter	None
Electrical accessories	None
Protective devices	None
Certifi cate	None

Technical data

LABS (PWIS) conformity		VDMA24364-B1/B2-L
Degree of protection		IP40
Setting range threshold value		0 % ... 100 %
Setting options		IO-Link® Teach-in Via display and keys
Display type		Illuminated LCD
Material housing		PA-reinforced
Pneumatic connection		Male thread G1/8 Male thread R1/8 Male thread 1/8 NPT Female thread M5 Female thread G1/8 For tubing O.D. 4 mm
Type of mounting		Front panel mounting Via thread Via wall/surface bracket
Electrical connection 1, number of connections/cores		4
Electrical connection 1, connection type		Plugs
Operational voltage range DC		10,8 V ... 30 V
IO-Link, Min. cycle time		3 ms
IO-Link, Process data length IN		2 bytes
IO-Link, Port class		A
IO-Link, communication mode		COM2 (38.4 kBaud)
IO-Link, Profile		Smart sensor profile
Protocol		IO-Link®
Min. load resistance voltage output		20 kOhm
Analogue output		0 - 10 V 4 - 20 mA 1 - 5 V
Switching element function		N/C or N/O contact, switchable
Switching output		2 x PNP or 2 x NPN, switchable PNP/NPN, switchable
Repetition accuracy in ± %FS		0,3 %FS
Ambient temperature		0 °C ... 50 °C
Note on operating and pilot medium		Lubricated operation possible
Max. overload pressure		5 bar ... 20 bar
Start value for pressure measuring range		-14,5 psi
Measured variable		Relative pressure
Certificate issuing authority		UL E322346
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00995685 00995686 00997331

Corrosion resistance class CRC		2 - Moderate corrosion stress
Setting range hysteresis		0 % ... 90 %
Protection against tampering		IO-Link PIN code
Displayable units		MPa bar inH2O inHg kPa kgf/cm² mbar mmHg psi
Material in contact with the medium		Anodised wrought aluminium alloy FPM NBR PA-reinforced High-alloy stainless steel
Product weight		21 g ... 46 g
Mounting position		optional

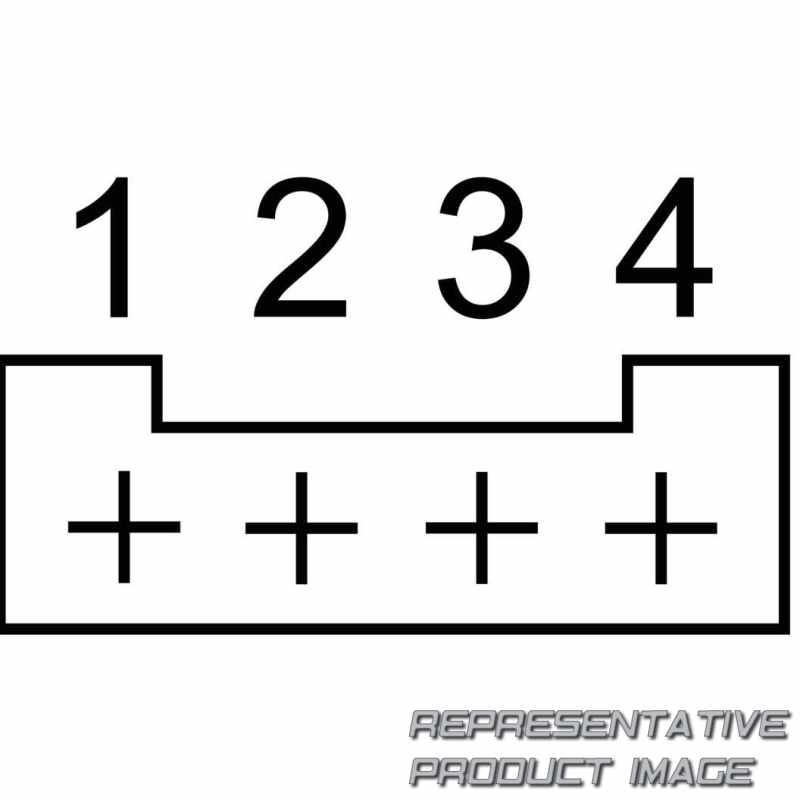

Electrical connection 1, connection pattern		00995428
Electrical connection 1, connector system		Connection pattern L1J
Reverse polarity protection		For all electrical connections
IO-Link, Data storage required		500 Byte
IO-Link, Process data content IN		14 bit PDV (pressure measurement value) 2 bit BDC (pressure monitoring)
IO-Link, Process data length OUT		0 bytes
IO-Link, SIO-Mode support		Yes
IO-Link, Function classes		Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel
IO-Link, Protocol version		Device V 1.1
Short circuit current rating		yes
Max. load resistance current output		500 Ohm
Max. output current		80 mA ... 100 mA
Switching function		Window comparator Threshold value comparator Auto difference monitoring
Temperature coefficient in ± %FS/K		0,05 %FS/K ... 0,1 %FS/K
Accuracy in ± % FS		1,5 %FS
Media temperature		0 °C ... 50 °C
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
End value for pressure measuring range		232 psi
Measurement method		Piezoresistive pressure sensor
Note on materials		RoHS-compliant
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)
