| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Degree of protection | IP67 | ||
| Setting range upper limit | 32 mm | ||
| Setting options | Teach-in Teach-in via electrical connection | ||
| Ready status indication | Green LED | ||
| Product weight | 38 g | ||
| Size | 50x50x17 mm | ||
| Reverse polarity protection | For all electrical connections | ||
| Residual ripple | 10 % | ||
| Short circuit current rating | Pulsed | ||
| Max. output current | 100 mA | ||
| Switching element function | Light switching | ||
| Ambient temperature | -10 °C ... 55 °C | ||
| Max. light spot | Ø 4 mm at a sensing range of 22 mm | ||
| Measurement method | Colour sensor | ||
| Measured variable | Position | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Conforms to standard | EN 60947-5-2 |
| Corrosion resistance class CRC | 4 - Very high corrosion stress | ||
| Ambient temperature with moving cable | -5 °C ... 55 °C | ||
| Setting range lower limit | 12 mm | ||
| Switching status indication | LED | ||
| Material housing | ABS | ||
| Type of mounting | With through-hole | ||

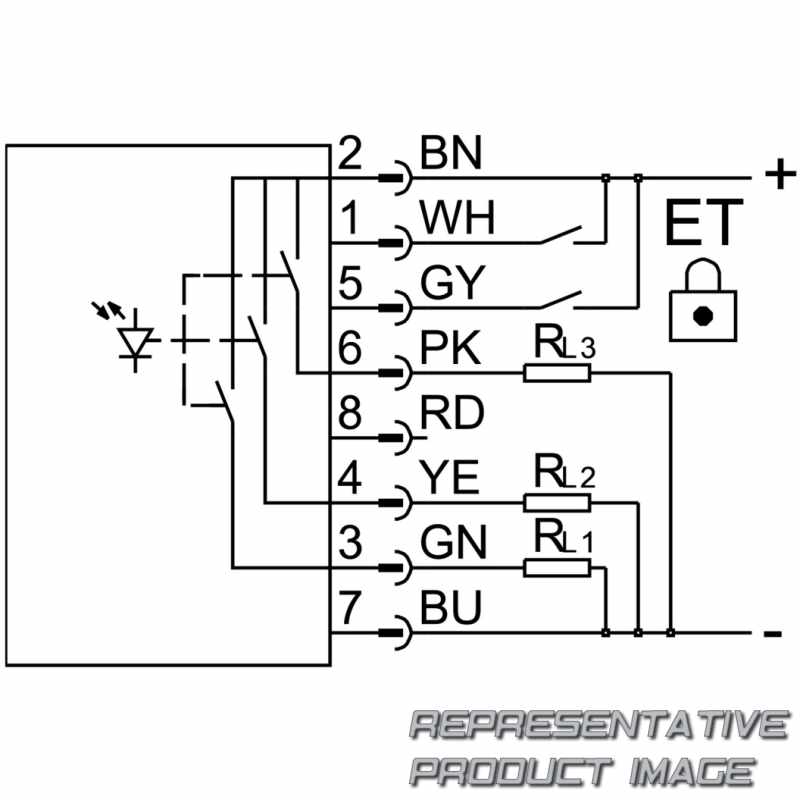

| Electrical connection | 8-pin M12x1 Plugs | ||
| No-load supply current | 40 mA | ||
| Operational voltage range DC | 10 V ... 30 V | ||
| Voltage drop | ≤ 2,4 V | ||
| Max. switching frequency | 500 Hz | ||
| Switching output | PNP | ||
| Operating distance | 12 mm ... 32 mm | ||
| Type of light | White | ||
| Measuring principle | Optoelectronic | ||
| Note on materials | RoHS-compliant | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991617 | ||
| Design | Block design |
