| Cleanroom class | Class 4 according to ISO 14644-1 | ||
| Degree of protection | IP65 IP68 IP69K | ||
| Switching status indication | Yellow LED (for PNP)/white LED (for NPN) | ||
| Housing colour | Black | ||
| Mounting position | optional | ||
| Type of mounting | Screw-clamped Insertable in the slot from above | ||
| Cable sheath colour | grey | ||
| Cable length | 0,3 m | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, type of mounting | Screw-type lock | ||
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 | ||
| Reverse polarity protection | For all electrical connections | ||
| Rated operational voltage DC | 24 V | ||
| Short circuit current rating | yes | ||
| Max. switching capacity DC using mounting kits | 2,7 W | ||
| Max. output current using mounting kits | 100 mA | ||
| Max. switching frequency | 180 Hz | ||
| Switch-on time | ≤ 1 ms | ||

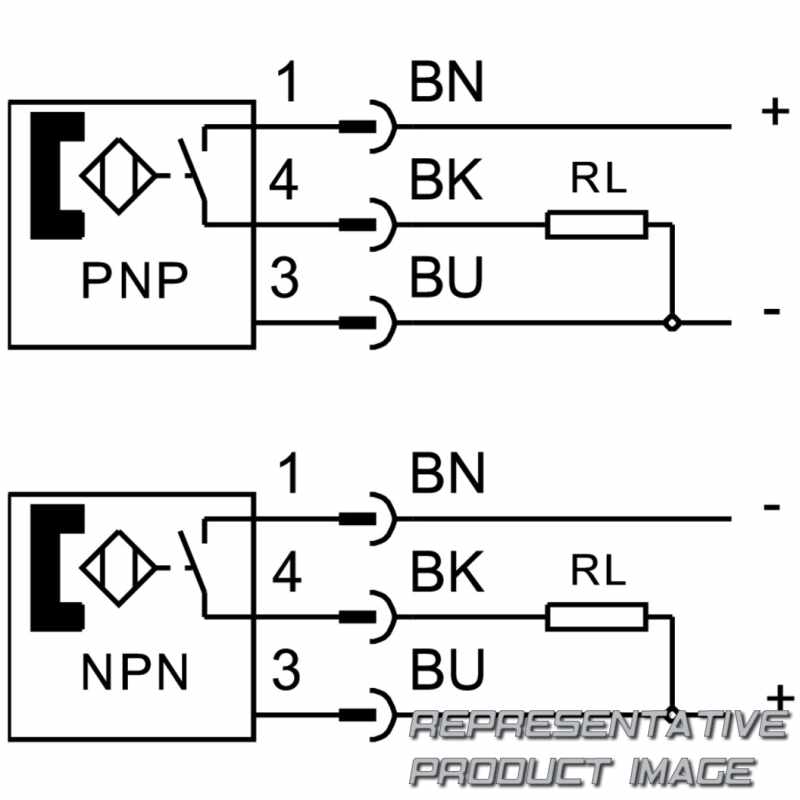

| Switching output | PNP/NPN, switchable | ||
| Ambient temperature | -40 °C ... 85 °C | ||
| Measured variable | Position | ||
| Note on materials | RoHS-compliant Free of halogen | ||
| Certificate issuing authority | UL E232949 | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us listed (OL) | ||
| Based on standard | EN 60947-5-2 |
| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Ambient temperature with moving cable | -20 °C ... 85 °C | ||
| Material housing | Nickel-plated brass PA-reinforced High-alloy stainless steel | ||
| Product weight | 9 g | ||
| Max. tightening torque | 0,6 Nm | ||
| Material cable sheath | TPE-U(PUR) | ||
| Cable characteristic | Suitable for energy chains/robot applications | ||
| Test conditions cable | Bending strength: to Festo standard Test conditions on request Energy chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m | ||
| Electrical connection 1, connection pattern | 00991155 | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Cable with plug | ||
| Operational voltage range DC | 7 V ... 30 V | ||
| Overload protection | Available | ||
| Voltage drop | < 2,5 V | ||
| Max. switching capacity DC | 2,7 W | ||
| Max. output current | 100 mA | ||
| Switch-off time | ≤ 1 ms | ||
| Switching element function | N/O contact | ||
| Repetition accuracy | 0,2 mm | ||
| Measuring principle | Magneto-resistive | ||
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" | ||
| Special characteristics | Oil resistant | ||
| KC mark | KC-EMV | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00995299 | ||
| Design | For T-slot |
