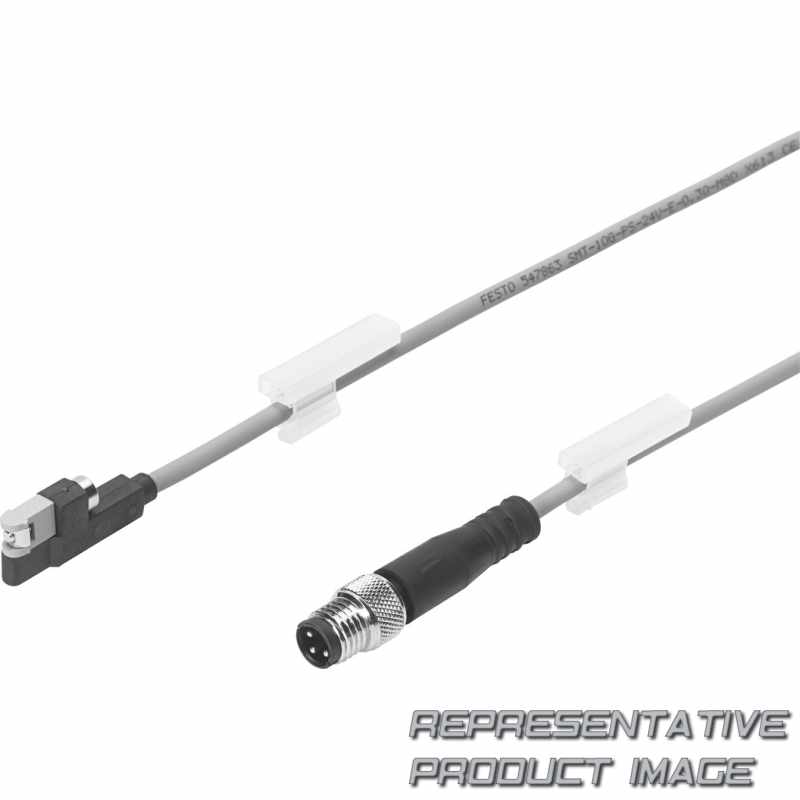

FESTO 547863 proximity sensor

Name: 547863 FESTO
Brand: FESTO
SKU: 663585-en-gbp
Price: 63.84 GBP
Availability: InStock

SMT-10G-PS-24V-E-0,3Q-M8D

£63.84

3 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SMT)	Proximity sensor
Design type (10G)	For round slot, inserted in the slot lengthwise
Switching output (PS)	3-wire PNP N/O contact
Rated operating voltage (24V)	24 V

Cable characteristic (E)	Suitable for energy chains/robot applications
Cable length [m] (0.3)	0.30
Cable outlet (Q)	Transverse
Electrical connection (M8D)	Cable with M8x1 plug, 3-pin, rotatable thread

LABS (PWIS) conformity		VDMA24364-B2-L
Ambient temperature with moving cable		-5 °C ... 70 °C
Material union nut		Nickel-plated brass
Housing colour		Black
Mounting position		optional
Type of mounting		Clamped in C-slot Insertable in the slot lengthwise
Cable sheath colour		grey
Cable length		0,3 m
Material electrical contact		Gold-plated brass
Electrical connection 1, connection pattern		00991155
Electrical connection 1, number of connections/cores		3
Electrical connection 1, connection type		Cable with plug
Residual ripple		10 %
Rated operational voltage DC		24 V
Short circuit current rating		yes
Inductive protective circuit		Adapted to MZ, MY, ME coils
Max. switching capacity DC		2,8 W
Max. switching frequency		150 Hz
Switch-on time		≤ 1 ms
Switching output		PNP
Ambient temperature		-20 °C ... 70 °C
Measured variable		Position
Note on materials		RoHS-compliant
KC mark		KC-EMV
CE mark (see declaration of conformity)		To EU EMC Directive In accordance with EU RoHS Directive
Symbol		00991153
Design		For C-slot

Degree of protection		IP65 IP68
Switching status indication		Yellow LED
Material housing		Aluminium PA-reinforced High-alloy stainless steel
Product weight		10 g
Max. tightening torque		0,6 Nm
Material cable sheath		TPE-U(PU)
Cable characteristic		Suitable for energy chains/robot applications
Test conditions cable		Bending strength: to Festo standard Test conditions on request Energy chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300,000 cycles, ± 270°/0.1 m
Connection outlet orientation		Lateral
Electrical connection 1, type of mounting		Screw-type lock
Electrical connection 1, connector system		M8x1, A-coded, to EN 61076-2-104
Reverse polarity protection		For all electrical connections
Operational voltage range DC		10 V ... 30 V
Overload protection		Available
Off-state current		≤ 0,01 mA
Voltage drop		≤ 2 V
Max. output current		100 mA
Switch-off time		≤ 1 ms
Switching element function		N/O contact
Repetition accuracy		0,2 mm
Measuring principle		Magneto-resistive
Instructions on use		Support / actuator-sensor overview "The right sensor for the actuator"
Certificate issuing authority		UL E232949
CE marking (see declaration of conformity)		To UK instructions for EMC To UK RoHS instructions
Approval		RCM trademark c UL us listed (OL)
Based on standard		EN 60947-5-2
