| LABS (PWIS) conformity | VDMA24364-B2-L | ||
| Ambient temperature with moving cable | -5 °C ... 70 °C | ||
| Material housing | PA High-alloy stainless steel | ||
| Type of mounting | Screw-clamped Insertable in the slot from above | ||
| Cable characteristic | Standard + energy chain | ||
| Test conditions cable | Bending strength: to Festo standard Test conditions on request Energy chain: 5 million cycles, bending radius 75 mm | ||
| Electrical connection 1, number of connections/cores | 3 | ||
| Electrical connection 1, connection type | Cable | ||
| Operational voltage range DC | 5 V ... 30 V | ||
| Overload protection | Not available | ||
| Voltage drop | 4,25 V | ||
| Max. switching capacity DC using mounting kits | 2,4 W | ||
| Max. switching capacity AC | 2,4 VA | ||
| Max. output current | 80 mA | ||

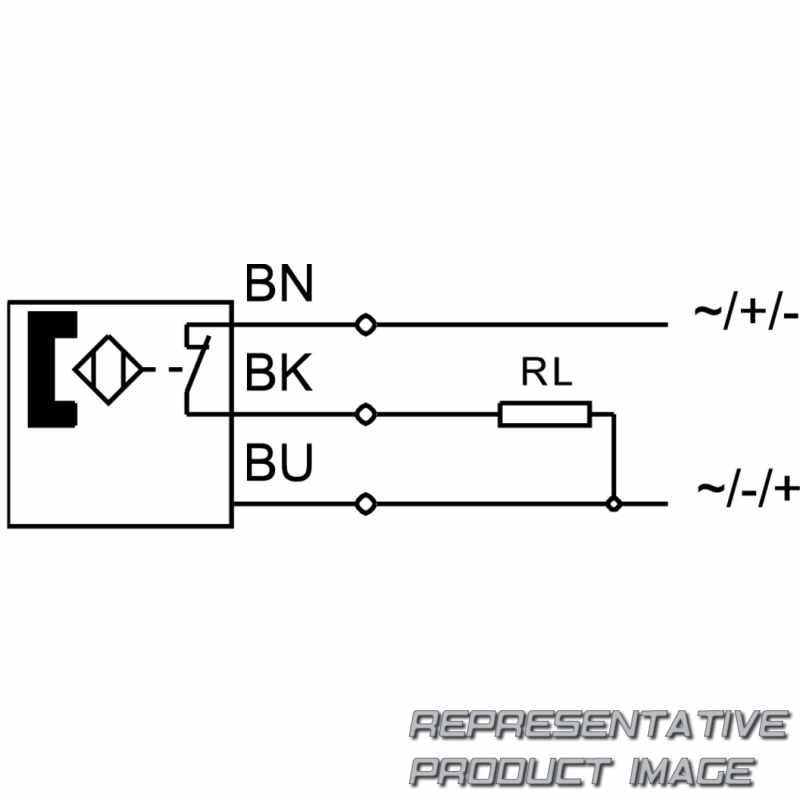

| Switching output | Contacting, bipolar | ||
| Measuring principle | Magnetic reed | ||
| Special characteristics | Oil resistant | ||
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive | ||
| Symbol | 00991622 |
| Degree of protection | IP65 IP68 | ||
| Switching status indication | Yellow LED | ||
| Product weight | 87,1 g | ||
| Material cable sheath | TPE-U(PUR) | ||
| Cable length | 7,5 m | ||
| Connection outlet orientation | In-line | ||
| Electrical connection 1, connector system | Open end | ||
| Reverse polarity protection | no | ||
| Operational voltage range AC | 5 V ... 30 V | ||
| Short circuit current rating | no | ||
| Max. switching capacity AC using mounting kits | 2,4 VA | ||
| Max. switching capacity DC | 2,4 W | ||
| Max. output current using mounting kits | 80 mA | ||
| Switching element function | N/C contact | ||
| Ambient temperature | -40 °C ... 70 °C | ||
| Note on materials | RoHS-compliant | ||
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | ||
| Approval | RCM trademark c UL us listed (OL) |
