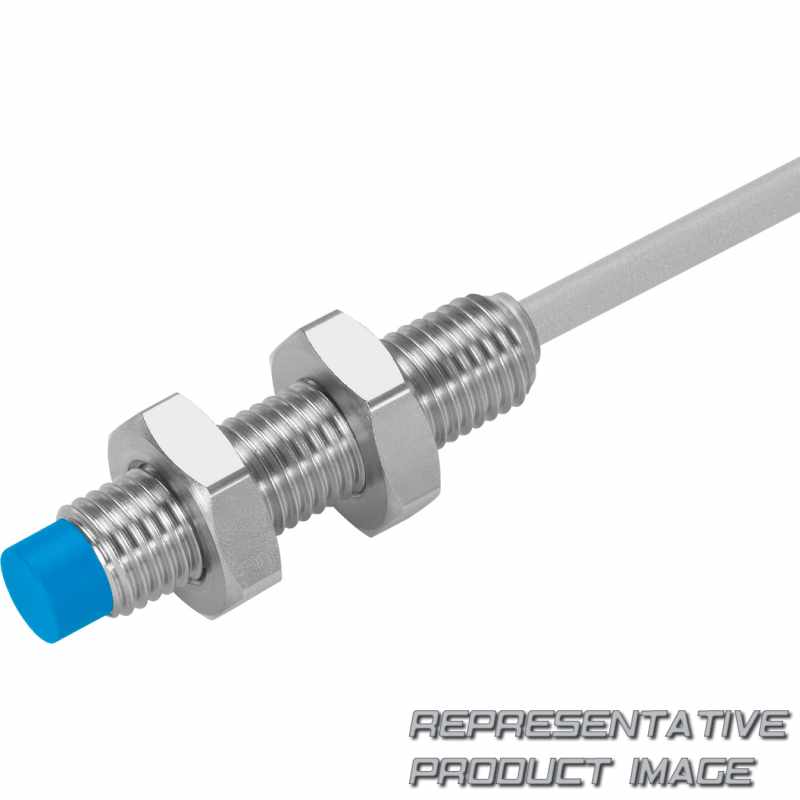

FESTO 150394 proximity sensor

Name: 150394 FESTO
Brand: FESTO
SKU: 670806-en-gbp
Price: 78.98 GBP
Availability: InStock

SIEN-M8NB-PS-K-L

£78.98

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEN)	Proximity sensor, inductive, with standard switching distance
Design (M8)	M8
Mounting type (NB)	Not ﬂ ush
Switching input/output (P)	PNP

Switching element function (S)	N/O contact
Electrical connection (K)	Open end
Display (L)	Switching status
Housing material	Standard

Conforms to standard		EN 60947-5-2
Approval		RCM trademark c UL us listed (OL)
Rated operating distance		2,5 mm
Reduction factors		Aluminium = 0.25 Stainless steel St 18/8 = 0.7 Copper = 0.2 Brass = 0.35 Steel St 37 = 1.0
Repetition accuracy with constant conditions		0.12 mm
Switching element function		N/O contact
Max. switching frequency		3.000 Hz
Voltage drop		≤ 2 V
Short circuit current rating		Pulsed
Residual ripple		± 10%
Reverse polarity protection		For all electrical connections
Cable length		2,5 m
Size		M8x1
Mounting type		Not flush
Material housing		PBTP High-alloy stainless steel
Ambient temperature with moving cable		-5 °C ... 70 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Electrical output		PNP

Symbol		00991702
CE mark (see declaration of conformity)		To EU EMC Directive
Assured operating distance		2,03 mm
Ambient temperature		-25 °C ... 70 °C
Switching output		PNP
Hysteresis		≤ 0,12 mm
Max. output current		200 mA
Inductive protective circuit		Integrated
Operational voltage range DC		10 V ... 30 V
No-load supply current		≤ 10 mA
Electrical connection		Cable
Material cable sheath		TPE-U(PUR)
Type of mounting		Via lock nut
Product weight		53 g
Switching status indication		Yellow LED
Degree of protection		IP65 IP67
Additional information for sensor selection		with standard sensing distance
Selection of sensor design		Standard
