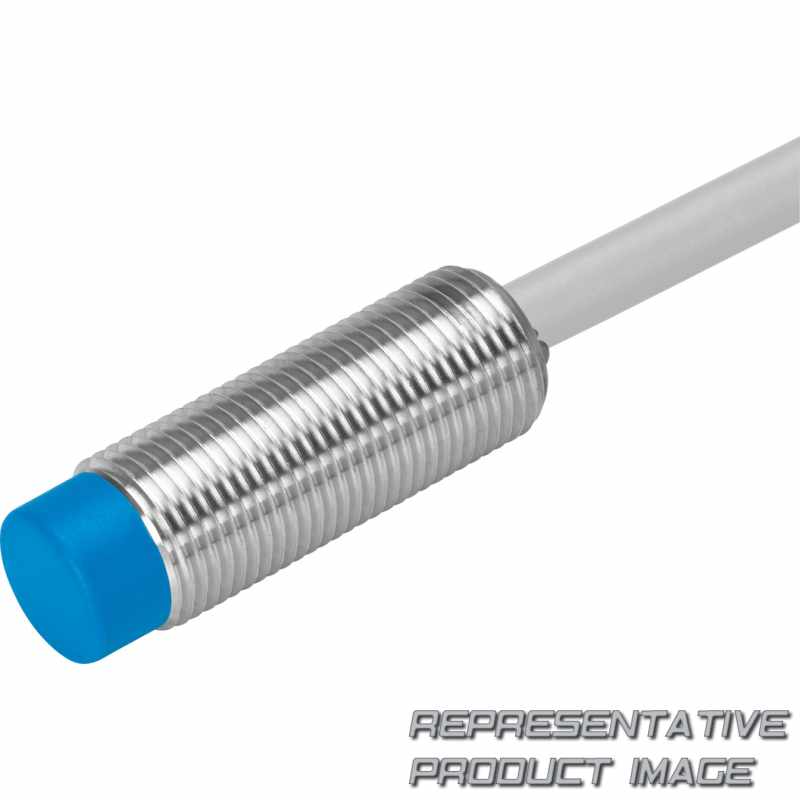

FESTO 150410 proximity sensor

Name: 150410 FESTO
Brand: FESTO
SKU: 681894-en-gbp
Price: 63.92 GBP
Availability: InStock

SIEN-M12NB-PS-K-L

£63.92 ~~£86.22~~ -25%

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEN)	Proximity sensor, inductive, with standard switching distance
Design (M12)	M12
Mounting type (NB)	Not ﬂ ush
Switching input/output (P)	PNP

Switching element function (S)	N/O contact
Electrical connection (K)	Open end
Display (L)	Switching status
Housing material	Standard

Selection of sensor design		Standard
Additional information for sensor selection		with standard sensing distance
Degree of protection		IP65 IP67
Switching status indication		Yellow LED
Product weight		90 g
Type of mounting		Via lock nut
Material cable sheath		TPE-U(PUR)
Electrical connection		Cable
No-load supply current		≤ 10 mA
Operational voltage range DC		10 V ... 30 V
Inductive protective circuit		Integrated
Max. output current		200 mA
Hysteresis		≤ 0,36 mm
Switching output		PNP
Ambient temperature		-25 °C ... 70 °C
Assured operating distance		3,24 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991702

Electrical output		PNP
Corrosion resistance class CRC		2 - Moderate corrosion stress
Ambient temperature with moving cable		-5 °C ... 70 °C
Material housing		Brass PBTP Nickel-plated
Mounting type		Not flush
Size		M12x1
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Residual ripple		± 10%
Short circuit current rating		Pulsed
Voltage drop		≤ 2 V
Max. switching frequency		2.000 Hz
Switching element function		N/O contact
Repetition accuracy with constant conditions		0.2 mm
Reduction factors		Aluminium = 0.5 Stainless steel St 18/8 = 0.9 Copper = 0.5 Brass = 0.6 Steel St 37 = 1.0
Rated operating distance		4 mm
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2
