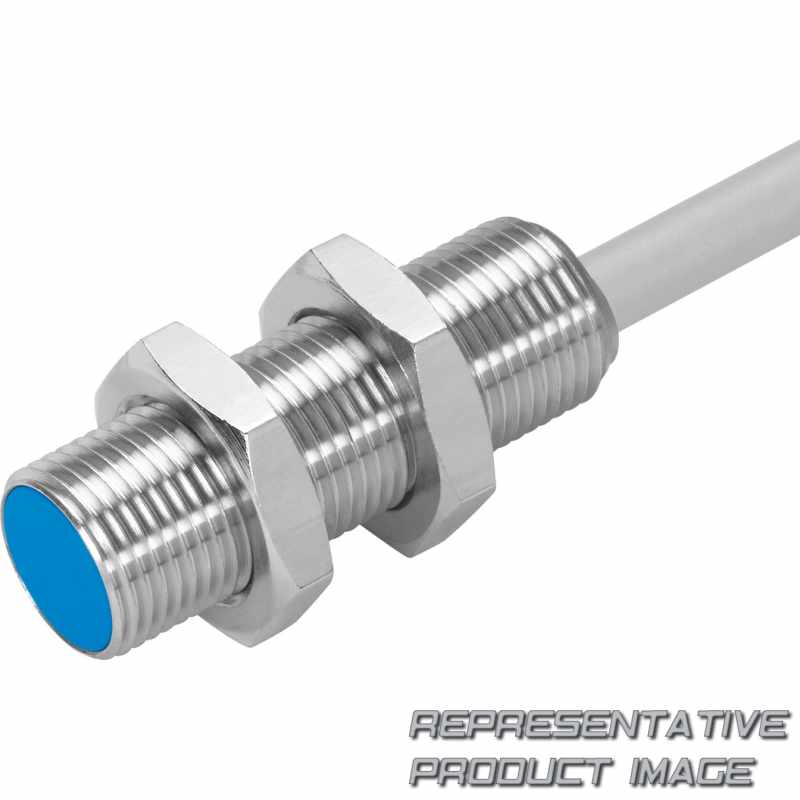

FESTO 150450 proximity sensor

Name: 150450 FESTO
Brand: FESTO
SKU: 679024-en-gbp
Price: 72.37 GBP
Availability: InStock

SIEH-M12B-PS-K-L

£72.37

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEH)	Proximity sensor, inductive, with increased switching distance
Design (M12)	Round, M12x1
Mounting type (B)	Flush
Switching input/output (P)	PNP

Switching element function (S)	N/O contact
Electrical connection (K)	Open end
Display (L)	Switching status
Housing material	Standard

Selection of sensor design		Standard
Additional information for sensor selection		with increased sensing distance
Degree of protection		IP65 IP67
Switching status indication		Yellow LED
Product weight		110 g
Type of mounting		Via lock nut
Material cable sheath		TPE-U(PUR)
Electrical connection		Cable
No-load supply current		≤ 10 mA
Operational voltage range DC		10 V ... 30 V
Inductive protective circuit		Integrated
Max. output current		200 mA
Hysteresis		≤ 0,36 mm
Switching output		PNP
Ambient temperature		-25 °C ... 70 °C
Assured operating distance		3,24 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991702

Electrical output		PNP
Corrosion resistance class CRC		2 - Moderate corrosion stress
Ambient temperature with moving cable		-5 °C ... 70 °C
Material housing		Brass PBTP Nickel-plated
Mounting type		Flush
Size		M12
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Residual ripple		± 10%
Short circuit current rating		Pulsed
Voltage drop		≤ 2 V
Max. switching frequency		2.500 Hz
Switching element function		N/O contact
Repetition accuracy with constant conditions		0.2 mm
Reduction factors		Aluminium = 0.4 Stainless steel St 18/8 = 0.8 Copper = 0.4 Brass = 0.5 Steel St 37 = 1.0
Rated operating distance		4 mm
Approval		C-Tick c UL us listed (OL)
Conforms to standard		EN 60947-5-2
