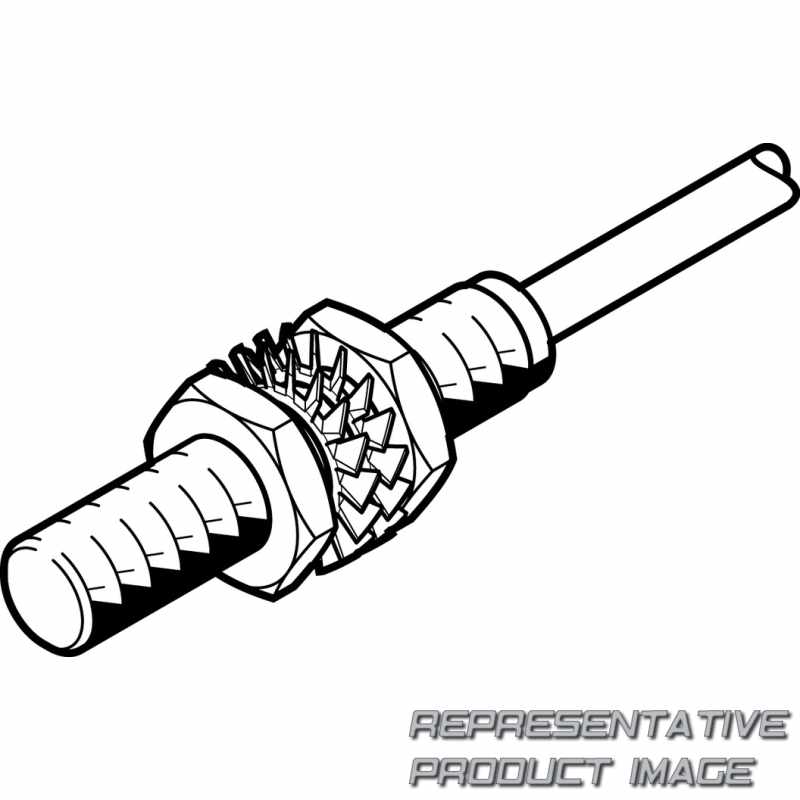

FESTO 553538 proximity sensor

Name: 553538 FESTO
Brand: FESTO
SKU: 680320-en-gbp
Price: 72.04 GBP
Availability: InStock

SIEF-M8B-PS-K-L

£72.04

2 pcs. with 1 to 3 days delivery to United States

Specifications

Series (SIEF)	Proximity sensor, inductive, with reduction factor 1 for all met- als, welding fi eld immune
Design (M8)	Round, M8x1
Mounting type (B)	Flush
Switching input/output (P)	PNP

Switching element function (S)	N/O contact
Electrical connection (K)	Open end
Display (L)	Switching status
Housing material	Standard

Max. switching frequency DC		2.000 Hz
Switching output		PNP
Ambient temperature		-30 °C ... 70 °C
Note on materials		RoHS-compliant
Approval		RCM trademark c UL us listed (OL)
Conforms to standard		EN 60947-5-2
Selection of sensor design		Standard
Pollution degree		3
Immunity to surge		0,8 kV
Degree of protection		IP68
Switching status indication		Yellow LED
Product weight		61,4 g
Size		M8
Cable length		2,5 m
Reverse polarity protection		For all electrical connections
Short circuit current rating		Pulsed

Switching element function		N/O contact
Repetition accuracy		0,08 mm
Rated operating distance		1,5 mm
CE mark (see declaration of conformity)		To EU EMC Directive
Symbol		00991702
Design		Round
Additional information for sensor selection		Reduction factor 1, resistant to magnetic fields
Corrosion resistance class CRC		2 - Moderate corrosion stress
Immunity to magnetic fields		Magnetic direct and alternating field
Ambient temperature with moving cable		-5 °C ... 70 °C
Material housing		PA PP High-alloy stainless steel
Mounting type		Flush
Material cable sheath		TPE-U(PU)
Electrical connection		3-wire Cable
Operational voltage range DC		10 V ... 30 V
Max. output current		150 mA
