| ac switching current, max. | 0.13 a | ||
| voltage drop u at imax | ≤ 3,5 v | ||
| min. ambient temperature | -20 °c | ||
| certificates | rohs, ul (underwriters laboratories) | ||
| type of contact | reed | ||
| slot width | 6 mm t-slot | ||
| direct mounting for series | pra, pre, cci, kpz | ||
| Shock resistance | 30 g / 11 ms | ||
| operational voltage ac, max. | 30 v ac | ||
| operating voltage dc, max. | 30 v dc | ||

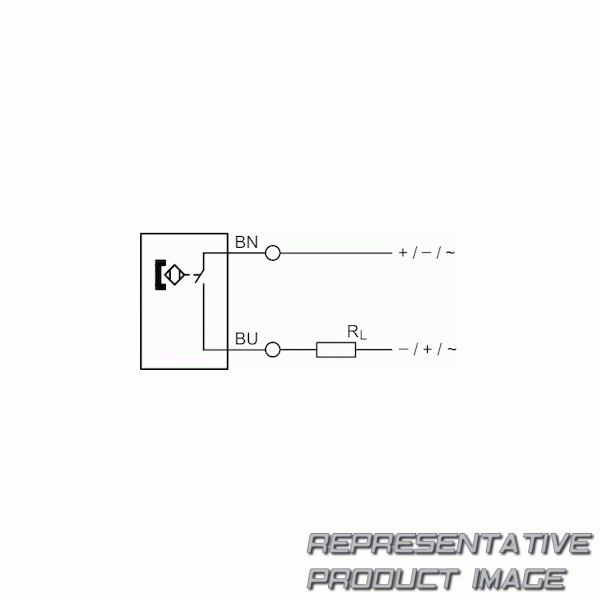

| electrical connection 2, number of poles | 2-pin | ||
| switching logic | no (make contact) | ||
| Max. switching frequency | 400 hz |
| dc switching current, max. | 0.13 a | ||
| max. ambient temperature | 120 °c | ||
| Protection class | ip65, ip67 | ||
| switching capacity | reed, 2-pin: max. 10 w | ||
| cable | with cable | ||
| indirect mounting for series | trb, its, mni, csl-rd, rpc | ||
| Vibration resistance | 10 - 55 hz, 1 mm | ||
| short circuit resistance | protected against polarity reversal | ||
| operating voltage ac, min. | 0 v ac | ||
| operating voltage dc, min. | 0 v dc | ||
| electrical connection 2, type | open cable ends | ||
| switching point precision | ±0,1 mt |
