| Note | the e11 locking is delivered without a key (see accessories for keys r961403407)., the rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. depending on the customer application, a second blanking plug may be necessary. please order separately (see accessories). | ||
| reservoir | reservoir, polycarbonate, without protective guard | ||
| nominal flow qn | 1000 l/min | ||
| Condensate drain | fully automatic, closed without pressure | ||
| working pressure min. | 1.5 bar | ||
| min. ambient temperature | -10 °c | ||
| air supply | left | ||
| regulation range max. | 8 bar | ||
| Type | can be assembled into blocks | ||
| mounting orientation | vertical | ||
| regulator function | with relieving air exhaust | ||
| filter element | exchangeable |

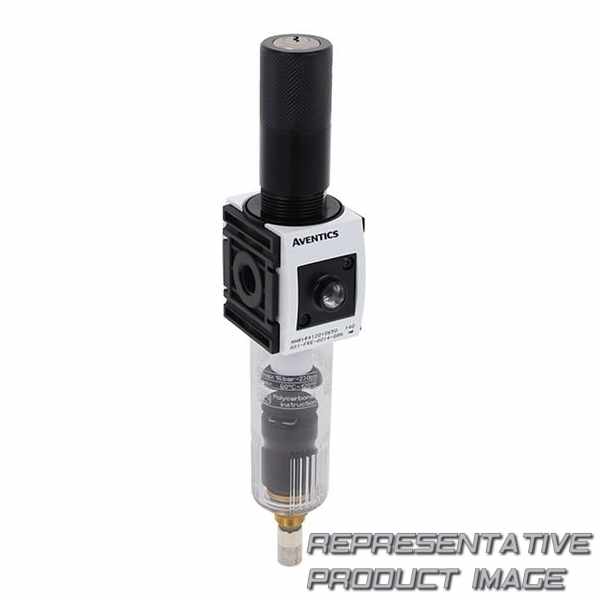

| parts | filter pressure regulator | ||
| port | g 1/4 | ||
| filter porosity | 5 µm | ||
| pressure gauge | without pressure gauge | ||
| working pressure max | 12 bar | ||
| max. ambient temperature | 50 °c | ||
| regulation range min. | 0.5 bar | ||
| lock type | e11 locking, without key | ||
| pressure supply | single | ||
| regulator type | diaphragm-type pressure regulator | ||
| max. pressure gauge Ø in blocked state | 40 mm | ||
| filter reservoir volume | 16 cm³ |
