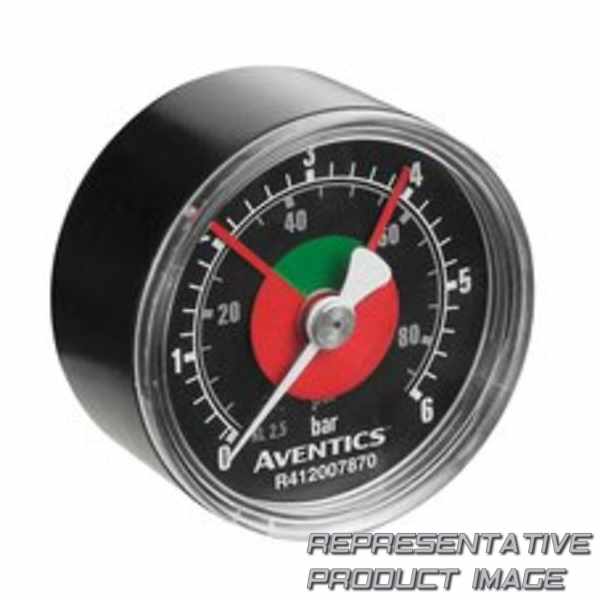

| pressure gauge version | bourdon tube pressure gauge, back port, with adjustable work area display | ||
| class | 2,5 | ||
| nominal diameter | 50 mm | ||
| range of application min. | 0 bar | ||
| display range min. | 0 bar | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | -40 °c | ||
| Medium | compressed air | ||
| main scale unit (outside) | bar | ||
| secondary scale unit (inside) | psi | ||
| work area display, color | red, green | ||
| Weight | 0.1 kg | ||
| material viewing window | polystyrene |
| standardization | en 837-1 | ||
| compressed air connection | g 1/4 | ||
| scale value | 0.50 | ||
| range of application max. | 12 bar | ||
| display range max. | 16 bar | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 60 °c | ||
| background color | black | ||
| main scale color (outside) | white | ||
| secondary scale color (inside) | grey | ||
| pointer color | white | ||
| Housing Material | acrylonitrile butadiene styrene |
