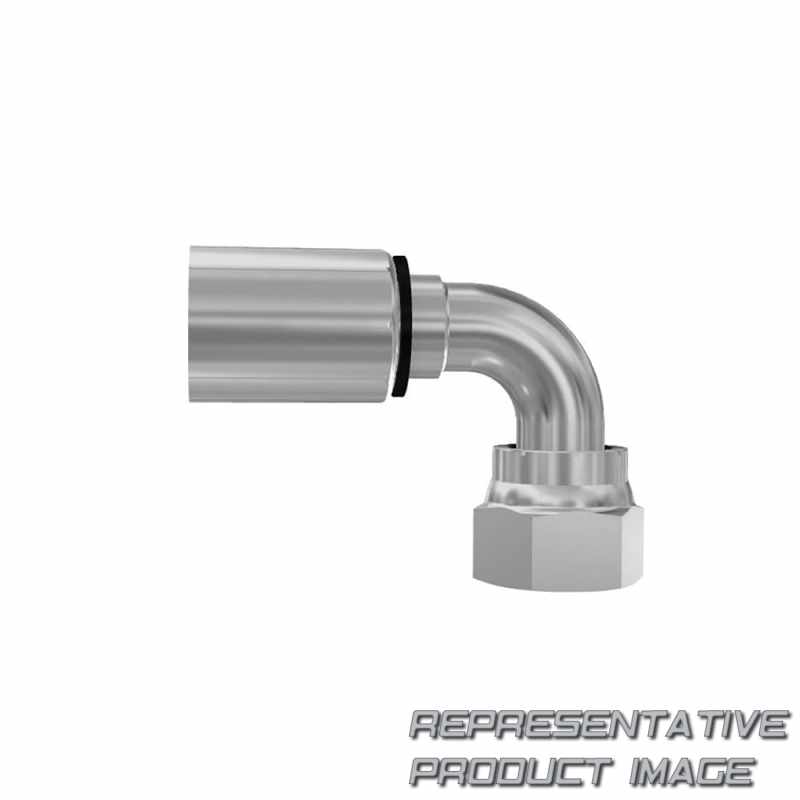

1J948-8-8 Parker Hannifin

PARKER 1J948-8-8

Name: 1J948-8-8 PARKER
Brand: PARKER
SKU: 559461-en-gbp
Price: 20.19 GBP
Availability: InStock

£20.19 ~~£28.68~~ -29%

21 pcs. with 1 to 3 days delivery to United States

Specifications

Parker Parkrimp Medium Pressure Fittings - 48 Series - are permanent, crimp style hydraulic fittings that allow a quick assembly with our family of Parkrimp crimpers.

max. pressure	635 bar, 9209 psi, 63.5 mpa

Weight	100g

Technical data

materials of construction		steel
shape		90° elbow - short drop
port type		orfs
maximum operating pressure		635 bar, 9209 psi, 63.5 mpa
connection 1 size		-8
division		polymer hose division europe
industry		industrial manufacturing equipment, off-road machinery, transportation
connection 2 type		female, seal-lok, swivel
connection 2 size		13/16x16
body material		steel
configuration		hose to port
hex size 1		22 mm, 24 mm
coating		chromium 6 free-plated

product style		female orfs - swivel
Port size		13/16"
hose inside diameter		-8
Brand		parker
connection length		32 mm (see drawing legend b)
connection 1 hose inside diameter		12.7 mm, 1/2 inch
Application		hydraulic
technology		fluid & gas handling
product type		hose fittings
specifications met		iso 12151-1 – swes, sae j516
connection 1 type		hose
for fluid type		hydraulic fluids, mineral oil, water glycol, air, water
