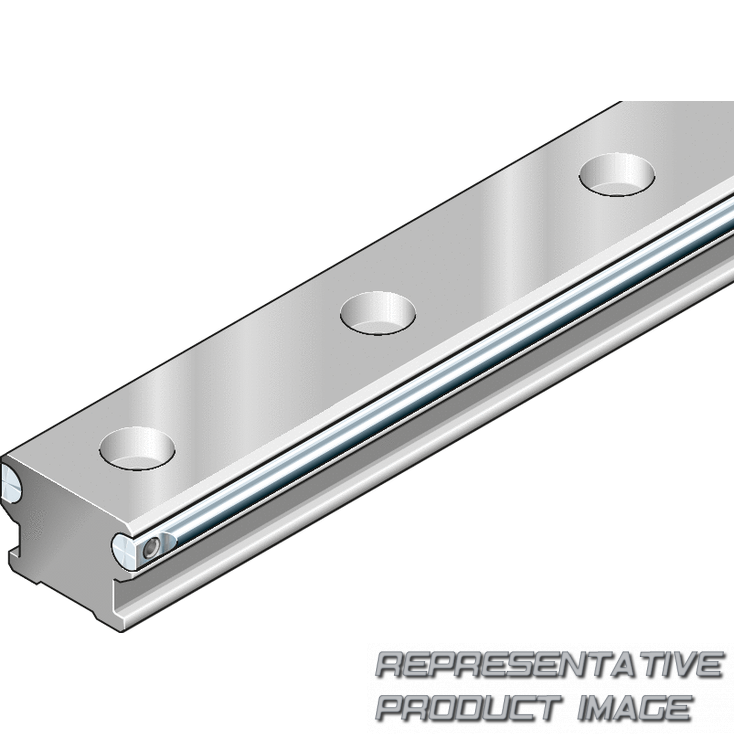

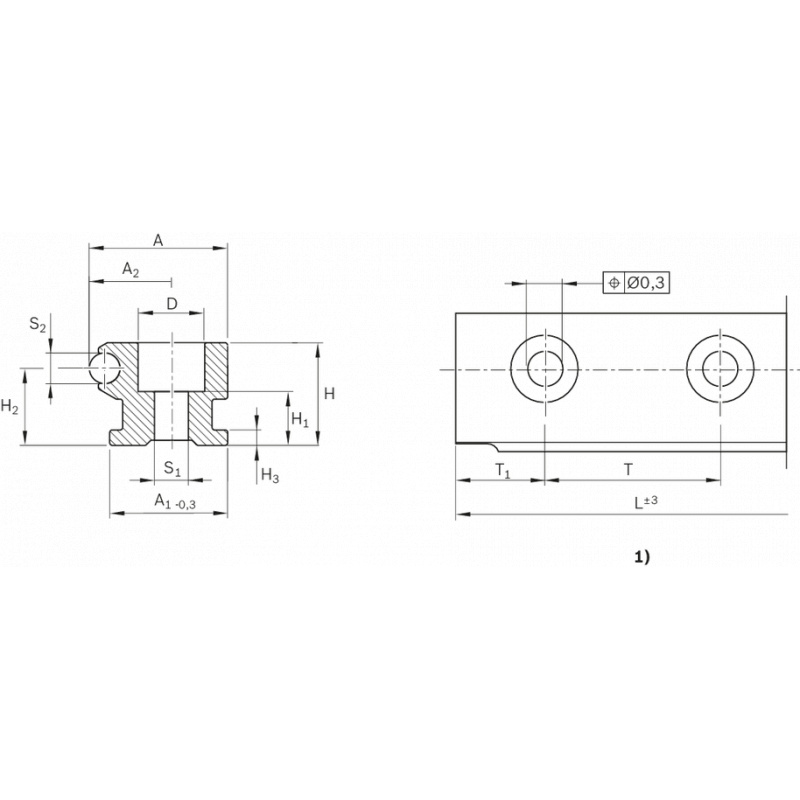

1)
Shown rotated through 90°. Mounting hole pattern not to scale.
| A | 42 | mm | |
| A2 | 26 | mm | |
| H | 34 | mm | |
| H2 | 25.10 | mm | |
| S1 | 13 | mm | |
| L (Guide tracks up to 3500 mm are made of one-piece precision steel shafts.) | 3,500 | mm | |
| T | 62.50 | mm | |
| T1 min | 20 | mm |
| A1 | 36 | mm | |
| D | 24 | mm | |
| H1 | 17 | mm | |
| H3 | 5 | mm | |
| S2 | 10 | ||
| Lmax | 7,000 | mm | |
| T1S | 29.25 | mm |
| Temperature stability | -20 °C ... +80 °C |
| Weight | 3.50 | kg |
