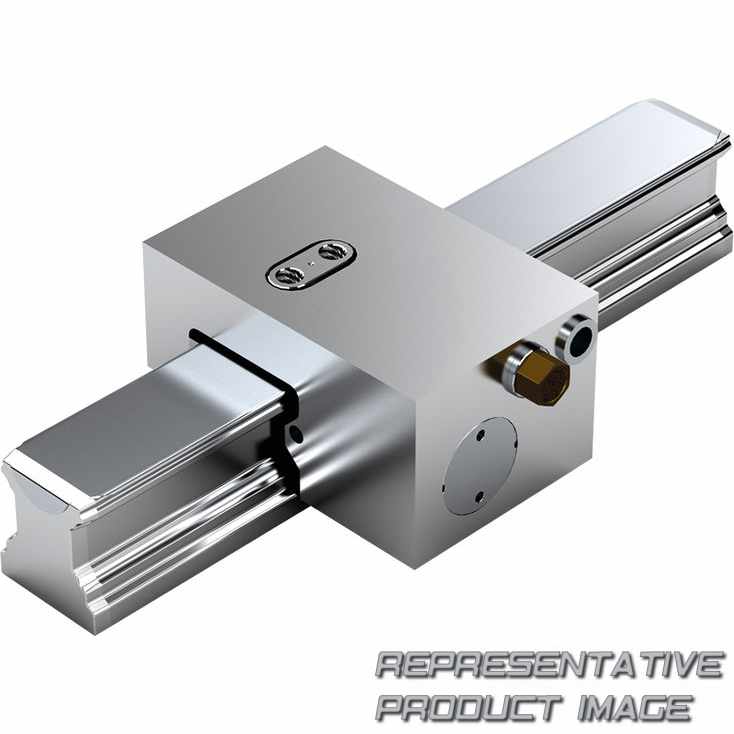

a)
Air connection*) M5 on two sides for release pressure
b)
Connection*) M5 on two sides for air filter
c)
Adjusting screw on two sides
d)
Spacer plate (accessory)
e)
Air filter: connection M5 (possible on two sides)
*) Only one connection needed.
All connections sealed upon delivery.
| A | 61.40 | mm | |
| E1 | 23.90 | mm | |
| E3 | 9.75 | mm | |
| F2 | 36 | mm | |
| F4 | 24.50 | mm | |
| H1 (Ball runner block .H. (...high...) Spacer plate necessary.) | 32.50 | mm | |
| N3 | 7.70 | mm | |
| X | 6.50 | mm |
| B | 41 | ||
| E2 | 9.50 | mm | |
| F1 | 6.50 | mm | |
| F3 | 6.50 | mm | |
| H | 36 | mm | |
| H3 | 24.55 | mm | |
| S2 | M5 |
| Spring energy holding force with standard air port (Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ) | 850 | N | |
| Max. pneumatic operating pressure | 8 | bar | |
| Operating conditions | Operating conditions | ||
| Permissible ambient temperature (min ... max) | 0 °C ... +60 °C |
| Air consumption (normal liter) standard air port | 0.02 | dm³/stroke | |
| Mass | 0.27 | kg | |
| Size | 25 |
