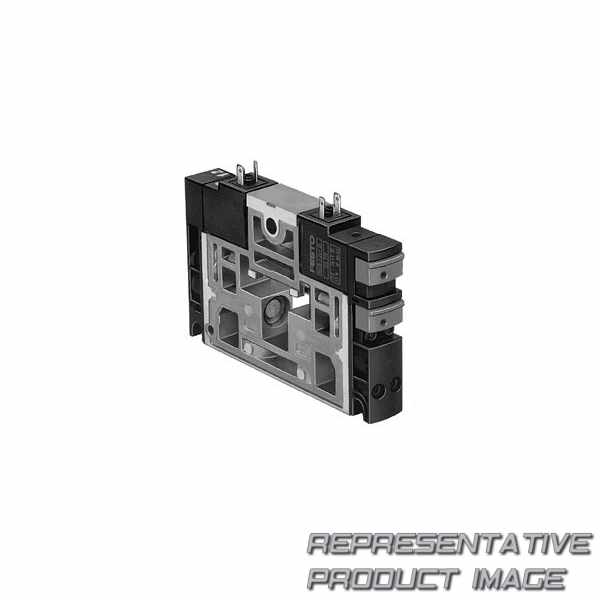

FESTO 163191 solenoid valve

Name: 163191 FESTO
Brand: FESTO
SKU: 676244-en-gbp
Price: 190.34 GBP
Availability: InStock

CPV18-M1H-5JS-1/4

£190.34

2 pcs. with 1 to 3 days delivery to United States

Specifications

Material housing		Die-cast aluminium Brass POM PPS Steel
Note on materials		RoHS-compliant
Pneumatic connection 3/5 combined		Common line
Pneumatic connection, port 11		Common line
Pilot exhaust port 82/84		Common line
Type of mounting		With through-hole
Ambient temperature		-5 °C ... 50 °C
Storage temperature		-20 °C ... 40 °C
Note on operating and pilot medium		Lubricated operation possible (in which case lubricated operation will always be required)
Electrical power consumption		1,5 W
Switching time reversal		12 ms
b value		0,38
lap		Positive overlap
Flow direction		Non-reversible
Type of piloting		Pilot actuated
Mounting position		optional
Exhaust-air function		Without flow control option
Degree of protection		IP65
Design		Piston gate valve
Operating voltage		24V DC
Standard nominal flow rate		1.600 l/min
Type of actuation		Electric

Material seals		HNBR NBR
Pneumatic connection, port 4		G1/4
Pneumatic connection, port 2		G1/4
Pneumatic connection, port 1		Common line
Pilot air port 12/14		Common line
Product weight		260 g
Media temperature		-5 °C ... 50 °C
Corrosion resistance class CRC		2 - Moderate corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:4:4]
Duty cycle		100%
C value		6,3 l/sbar
Pilot pressure		2 bar ... 8 bar

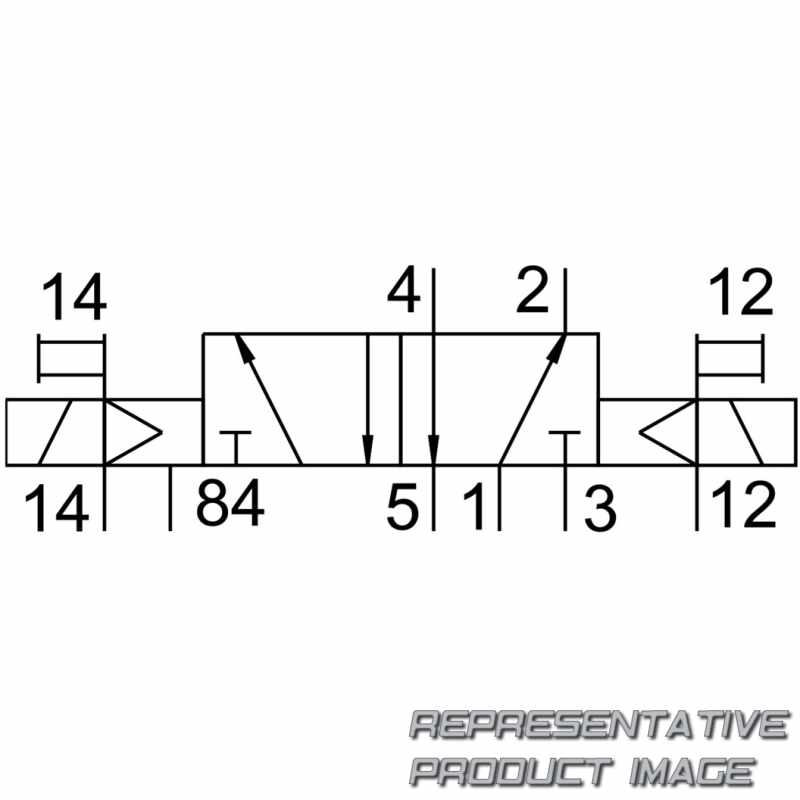

Symbol		00991683
Pilot air supply		External Internal
Manual override		Detenting Non-detenting
Sealing principle		Soft
Nominal size		8 mm
Approval		C-Tick
Operating pressure		-0,9 bar ... 10 bar
pneumatic working port		G1/4
Valve size		18 mm
Valve function		5/2 double solenoid
