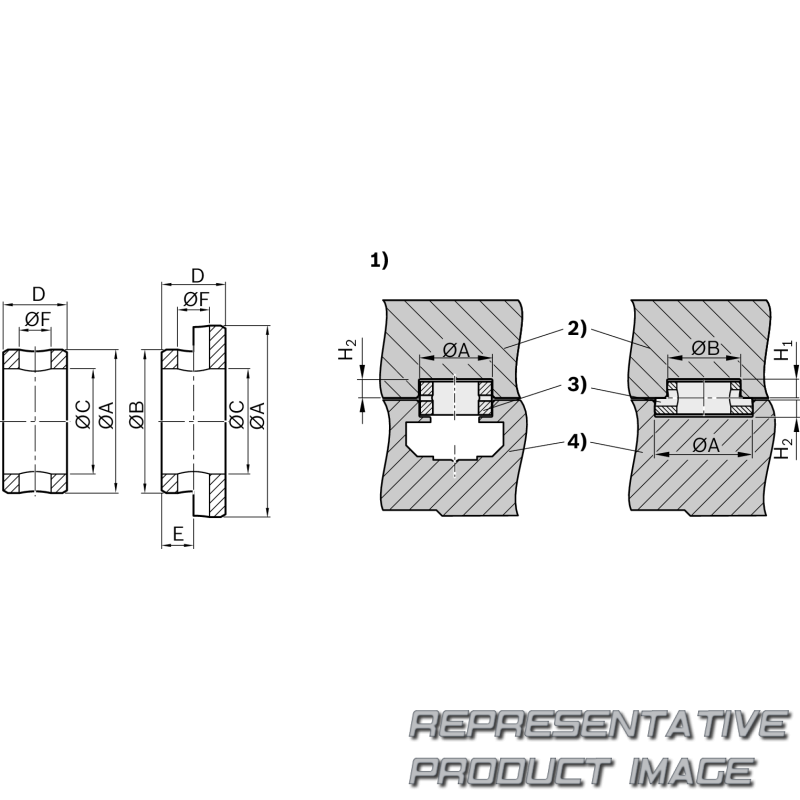

| Dimension H1 (profiled rail systems) | 2.1 mm | ||
| Dimension A H7/k6 | 12 mm | ||
| Dimension H2 tolerance | |||
| Dimension E tolerance | |||
| Dimension H1 | 2.1 mm | ||
| Tolerance D | |||
| Module | MKK-040/MKR-040; OBB-055/OBB-120 | ||
| Outer diameter d | 3.5 mm | ||

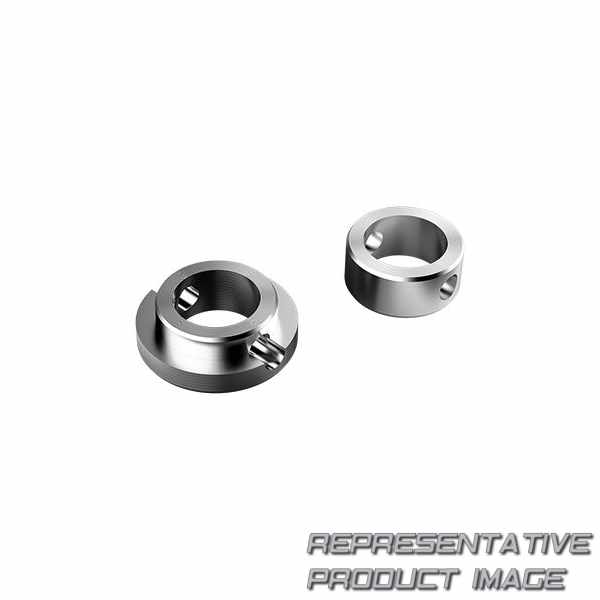

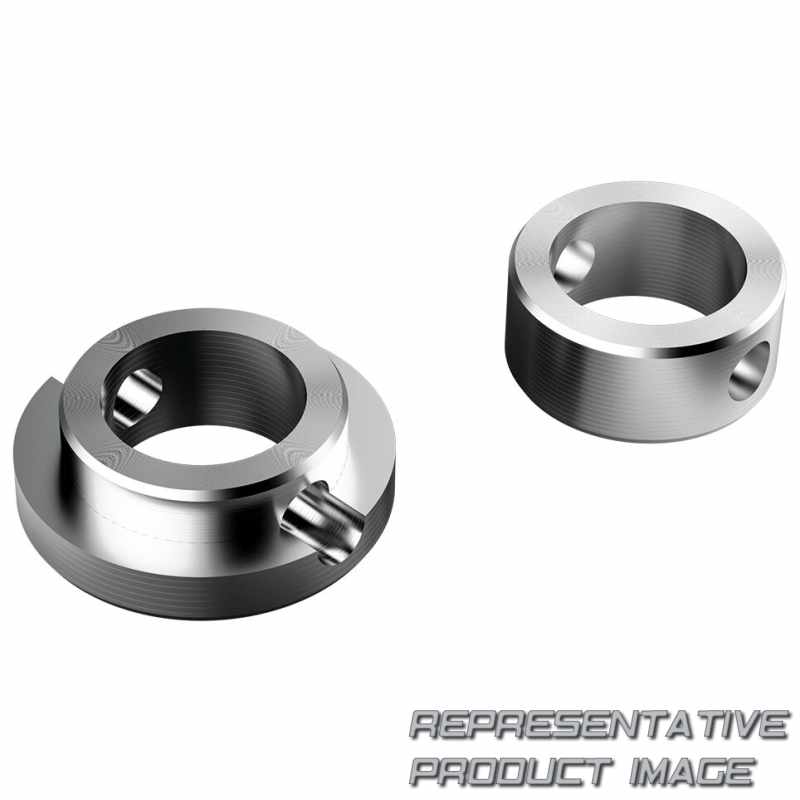

| Mechanical accessories for linear axes | Centering rings |
| Dimension B H7/k6 | 7 mm | ||
| Tolerance C | |||
| Dimension F | 1.6 mm | ||
| Dimension c | 5.5 mm | ||
| Dimension E | 1.5 mm | ||
| Dimension d | 3.5 mm | ||
| Footnote fastening site | Applies to size OBB-055; end block for size OBB-120 | ||
| Nominal size | 12 - 7 mm |
