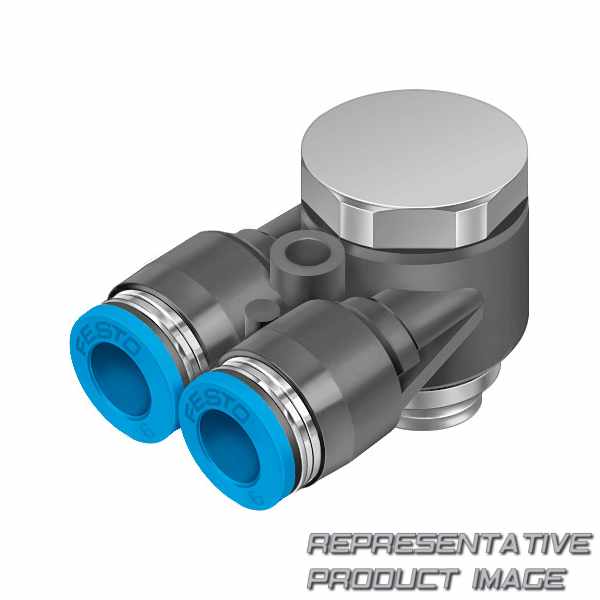

FESTO 186210 push-in y-fitting

Name: 186210 FESTO
Brand: FESTO
SKU: 686263-en-gbp
Price: 7.05 GBP
Availability: InStock

QSYLV-G1/4-8

£7.05

7 pcs. with 1 to 3 days delivery to United States

Specifications

Series (QSYLV)	Push-in fitting, L-shape, 2-way, rotatable, QSYLV
Design	Straight shape
Pneumatic connection 1 (G1/4)	Male thread G1/4
Pneumatic connection 2 (8)	Push-in connector 8 mm

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Material housing		PBT
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread G1/4
Number of outputs		2
Tolerance for nominal tightening torque		± 20%
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		1
Type of seal on screw-in stud		Sealing ring
Size		Standard

Material tubing seal		NBR
Material hollow bolt		Nickel-plated brass
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 8 mm
Number of supply lines		1
Product weight		48 g
Nominal torque		9 Nm
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		4,7 mm
