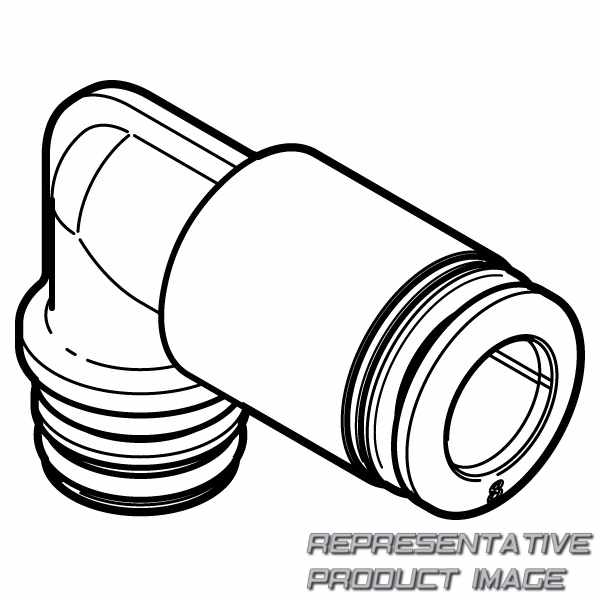

FESTO 132939 cartridge

Name: 132939 FESTO
Brand: FESTO
SKU: 677076-en-gbp
Price: 2.54 GBP
Availability: InStock

QSPLKG14-8

£2.54 ~~£3.37~~ -24%

available with 3 to 7 days delivery to United States

Specifications

Size	Standard
Mounting Position	optional

Pneumatic connection	Cartridge 14 mm
Weight	71g

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 8 mm
Product weight		7,1 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure complete temperature range		-0,95 bar ... 10 bar
Size of pack		10
Type of seal on screw-in stud		O-ring
Size		Standard

Material tubing seal		NBR
Material housing		PA-reinforced
Colour of release ring		Blue
Pneumatic connection, port 1		Cartridge 14 mm
Ambient temperature		-5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Design		Push-pull principle
Mounting position		optional
Nominal size		4,8 mm
