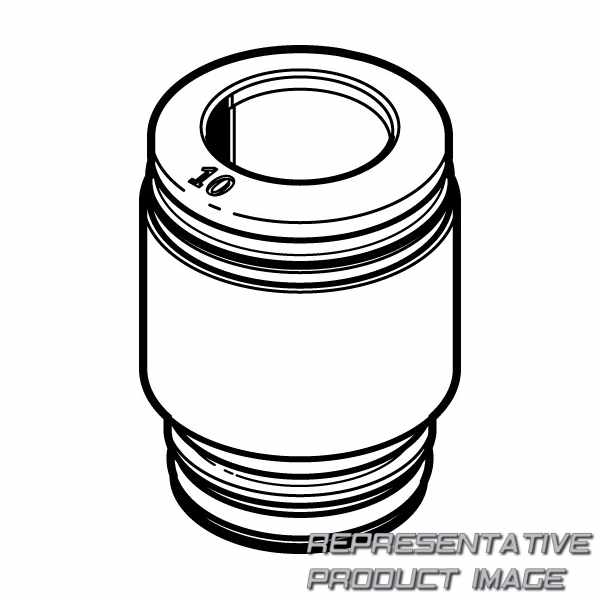

FESTO 132650 cartridge

Name: 132650 FESTO
Brand: FESTO
SKU: 667959-en-gbp
Price: 2.8 GBP
Availability: InStock

QSPKG18-10

£2.80 ~~£3.55~~ -21%

50+ pcs. with 1 to 3 days delivery to United States

Specifications

Size	Standard
Mounting Position	optional

Pneumatic connection	Cartridge 18 mm
Weight	81g

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 10 mm
Product weight		8,1 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Operating pressure complete temperature range		-0,95 bar ... 10 bar
Size of pack		10
Type of seal on screw-in stud		O-ring
Size		Standard

Material tubing seal		NBR
Material housing		PA-reinforced
Colour of release ring		Blue
Pneumatic connection, port 1		Cartridge 18 mm
Ambient temperature		-5 °C ... 60 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Design		Push-pull principle
Mounting position		optional
Nominal size		6,7 mm
