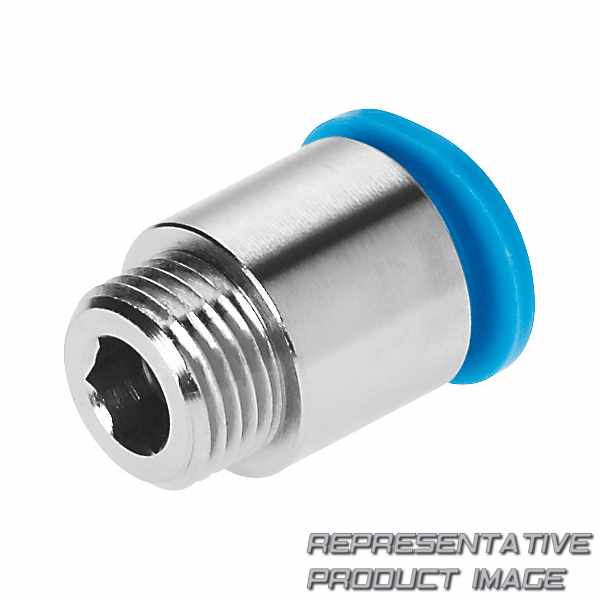

FESTO 153322 push-in fitting

Name: 153322 FESTO
Brand: FESTO
SKU: 675397-en-gbp
Price: 2.05 GBP
Availability: InStock

QSMP-M8X0.75-6

£2.05 £3 -31%

21 pcs. with 1 to 3 days delivery to United States

Specifications

Material tubing clamp component		High-alloy stainless steel
Material release ring		POM
Note on materials		RoHS-compliant
Pneumatic connection, port 2		For tubing outside diameter of 6 mm
Product weight		3,7 g
Corrosion resistance class CRC		1 - Low corrosion stress
Operating medium		Compressed air to ISO 8573-1:2010 [7:-:-]
Temperature-dependent operating pressure		-0,95 bar ... 14 bar
Design		Push-pull principle
Mounting position		optional
Nominal size		4 mm

Material tubing seal		NBR
Material housing		Brass Nickel-plated
Colour of release ring		Blue
Pneumatic connection, port 1		Male thread M8x0.75
Ambient temperature		-10 °C ... 80 °C
Note on operating and pilot medium		Lubricated operation possible
Maritime classification		See certificate
Operating pressure complete temperature range		-0,95 bar ... 6 bar
Size of pack		10
Type of seal on screw-in stud		Sealing ring
Size		Mini
